Steel Rotating Mounting Bracket with EPDM blue Gasket, Rotation 90°, 180°, 270°, 360°
On request custom attack



• Ease to tighten/loosen
• Anti-galling system
• 100% resistance to corrosion & chemical agents
• High resistance to breakage
• Compliance to teh EG Nr 1935/2004
• Possibility to adjust the rotation stiffness
• Rotation 90° – 180° – 270° – 360° – custom
• Materials: AISI 304 / FDA NBR, EPDM or Silicone
• AISI 316 on request

For the rotating model: add “… /A, /B, /C, /D” to the standard code, according to the rotation needed: Example – 270°: 60200/G2/C

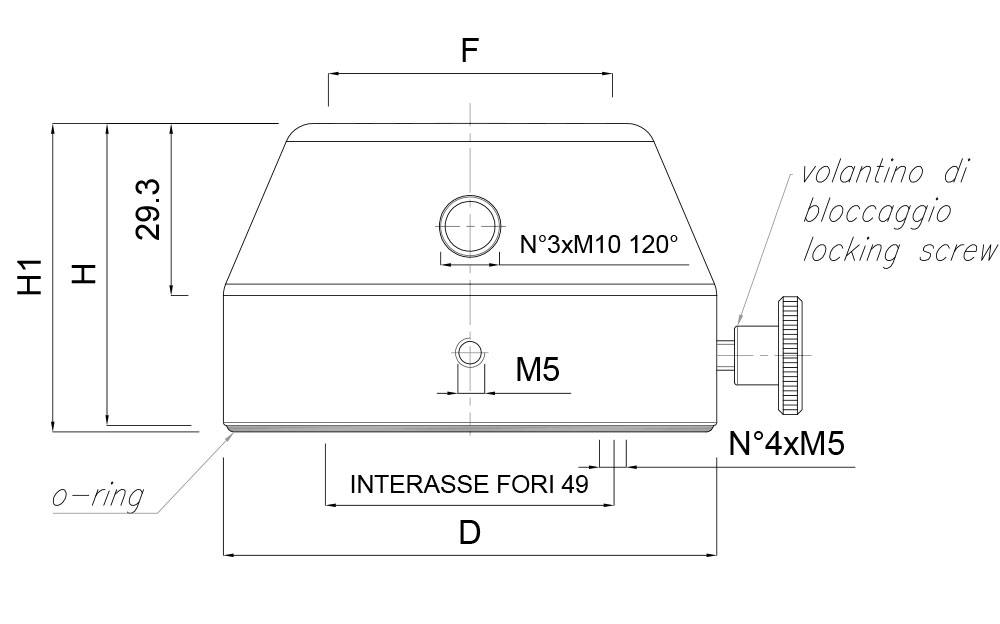

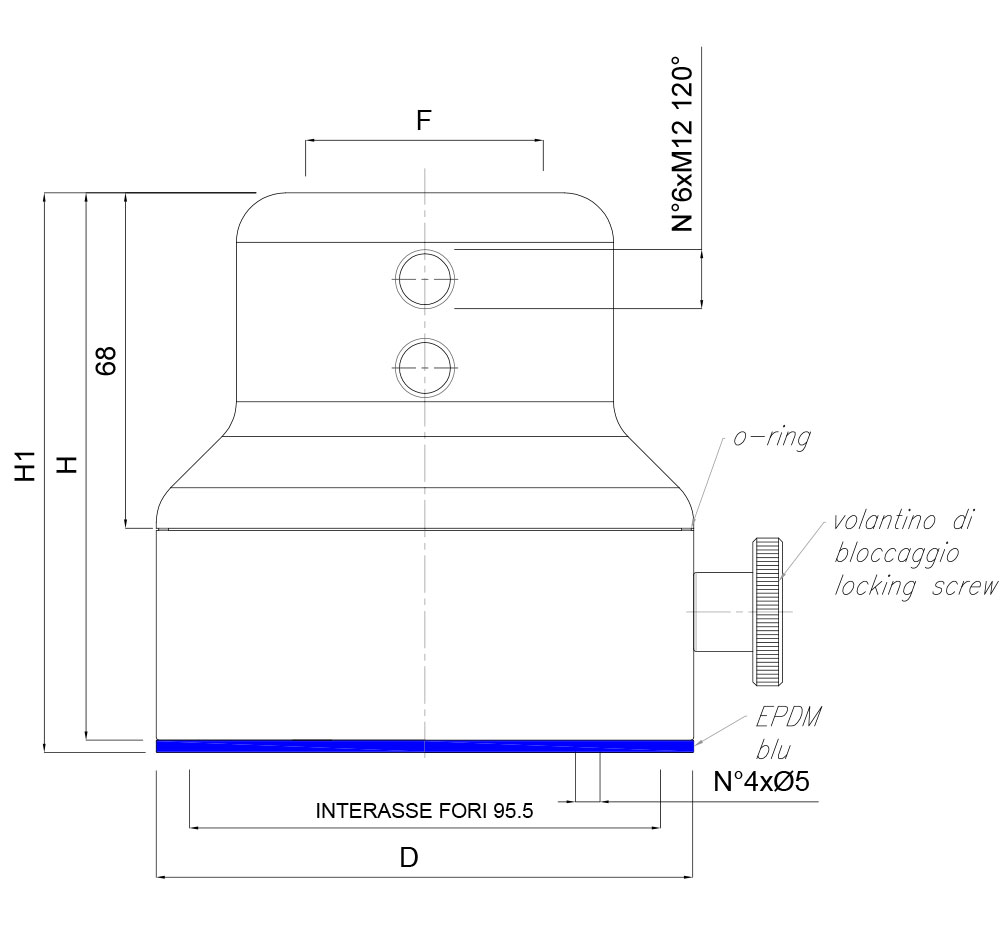

Rotating Model
Fixed Model
