Martin Product data sheet
Polyamide-Foot-Stainless-Steel-Screw
Polyamide-Foot-Stainless-Steel-Screw-83-HEX14

12634

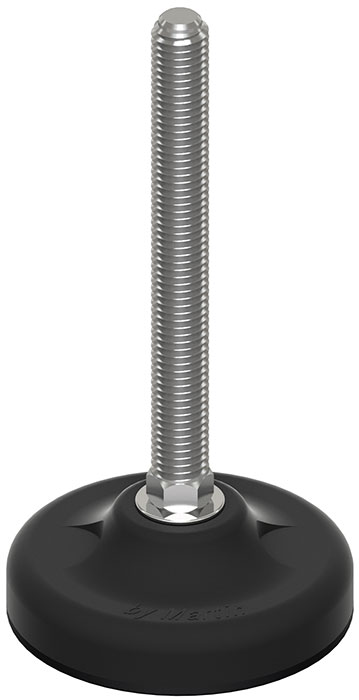

Polyamide Foot, Stainless Steel Screw

Sphere glass reinforced polyamide base with option for bolting/down holes, fix AISI 304 stainless steel screw. The spindle is made from hexagonal bar

Strenghts

Heavy loads but economic, hexagonal wrench, stainless steel screw

Applications

General all-purpose product with a focus on medium to heavy duty conveyors or machines

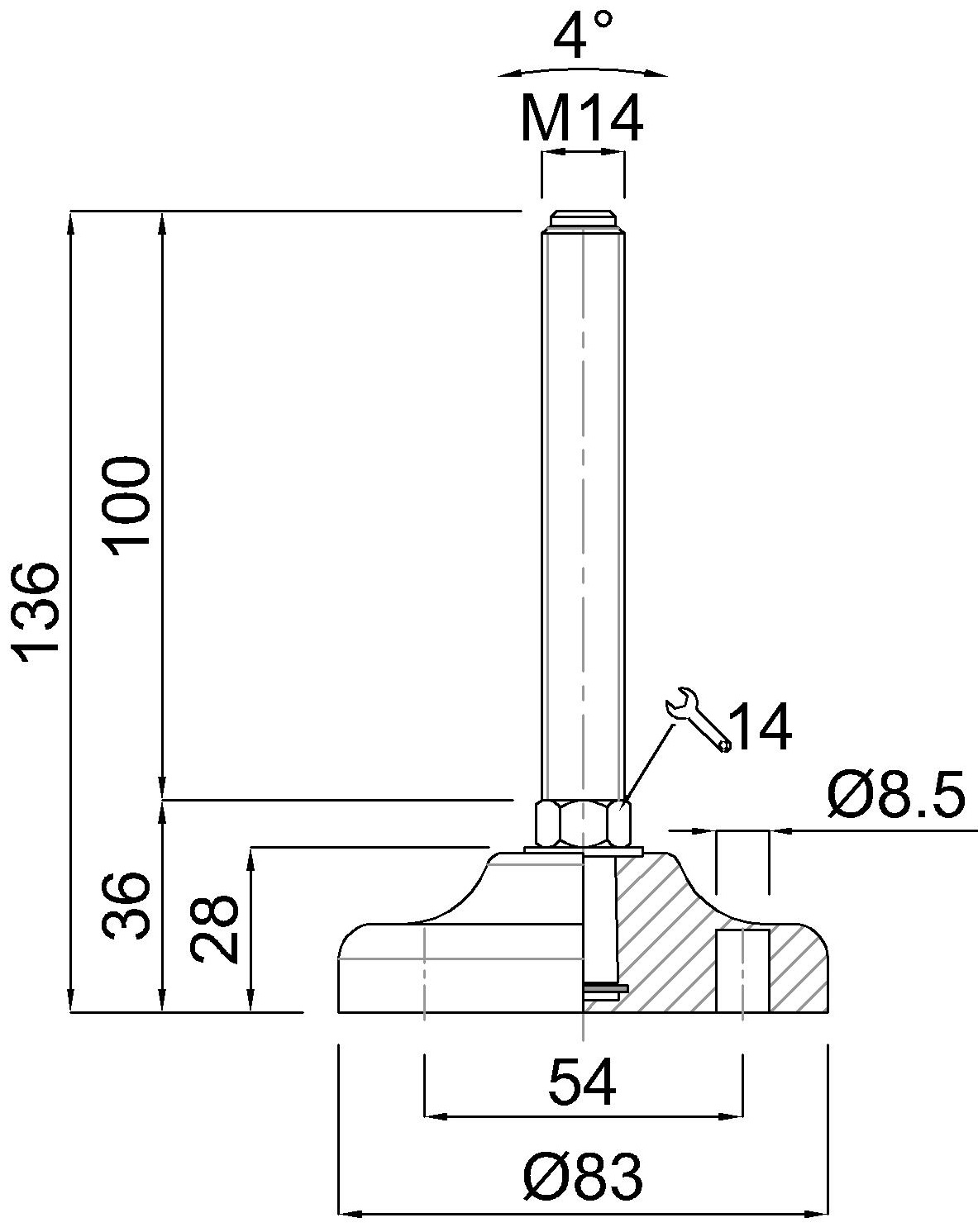

CODE 12634
SIZE (F)M14x2
FLOOR DISTANCE (A)36.00
STEM LENGTH (B)100,00
BASE SIZE (D)83
BASE HEIGHT (G)28
TOTAL HEIGHT (H)136,00
HOLE/S DISTANCE (I)54
REGULATION (SW)HEX 14
RUBBERNO
TREATMENTTURNED
WEIGHT (gr)193
LOAD (Newton)25000
12634
Polyamide-Foot-Stainless-Steel-Screw-83
