Martin Product data sheet
70170HYG-D-3A
70170HYG-D-3A

70170HYG/D/3A

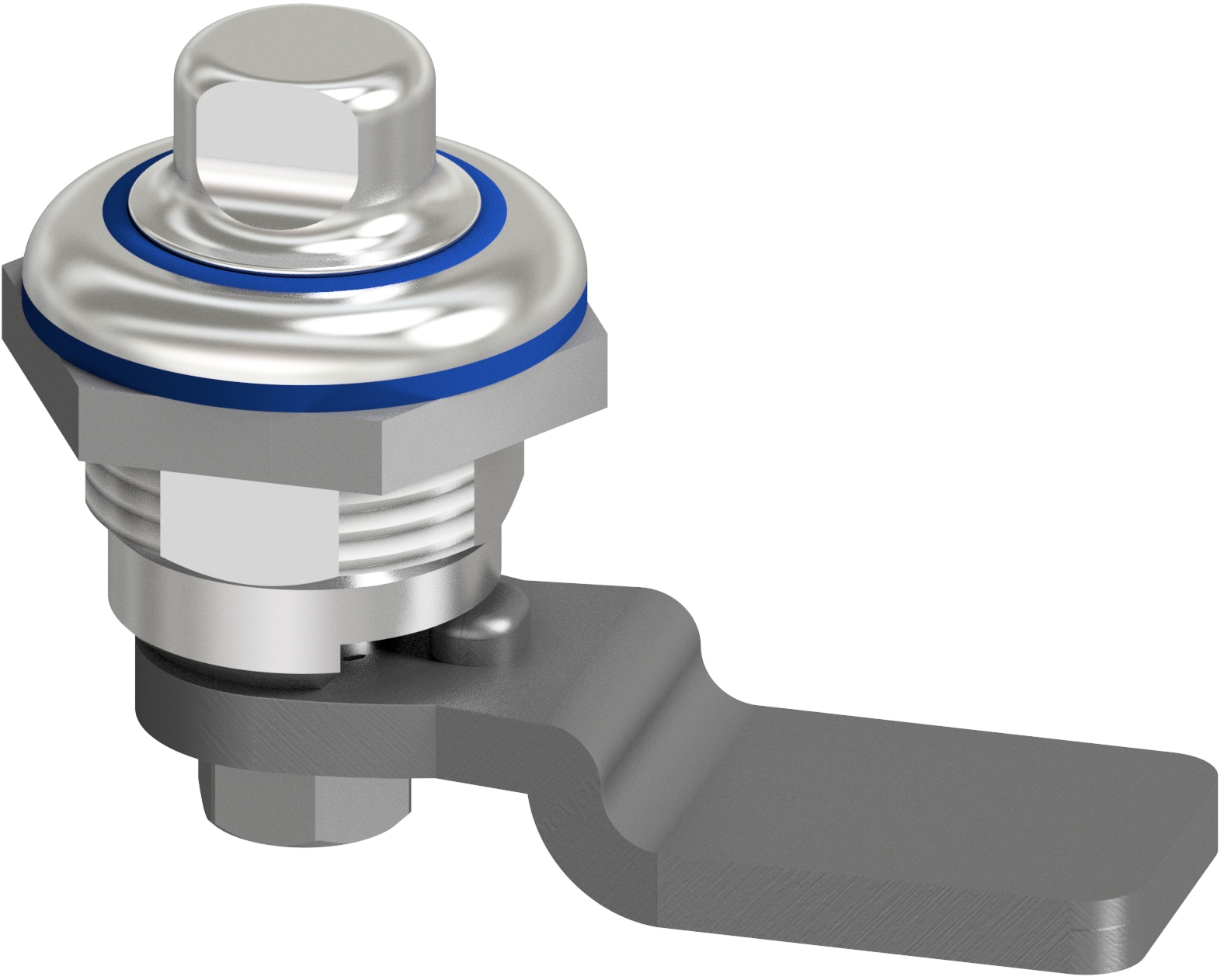

Closing System, 3A, type D

AISI 304 stainless steel 1/4 turn latch with male round insert, hygienic model, IP69K, 3A and EHEDG accepted, hole D.20-22

Strenghts

Stainless steel, hygienic, IP69K, 3A, EHEDG

Applications

Food, packaging, beverage, backery, chemical, pharma, etc.

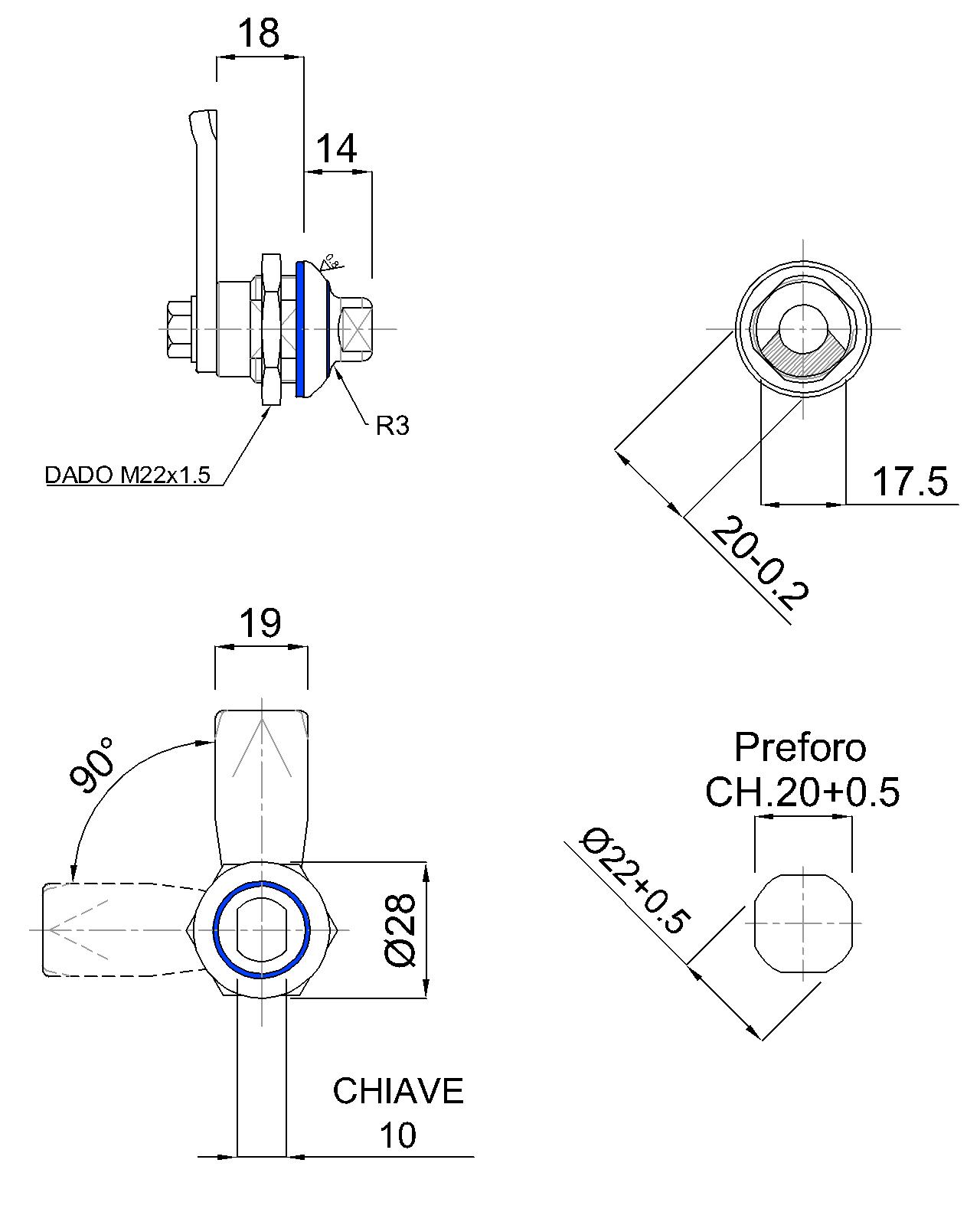

CODE 70170HYG/D/3A
SIZE (F)KEY
STEM LENGTH (B)18,00
BASE SIZE (D)28
TOTAL HEIGHT (H)18,00
REGULATION (SW)2 FLATS 10
NICHEMOUNTING HOLE 22
RUBBERFDA Blue Silicone 80 Shore
TREATMENTHIGH-GLOSS POLISHED
WEIGHT (gr)101
