Martin Product data sheet
Zinc-Steel-Anti-Vibration-Foot-Articulated-Screw-Vulcanized-Rubber
Zinc-Steel-Anti-Vibration-Foot-Articulated-Screw-Vulcanized-Rubber

28000Z

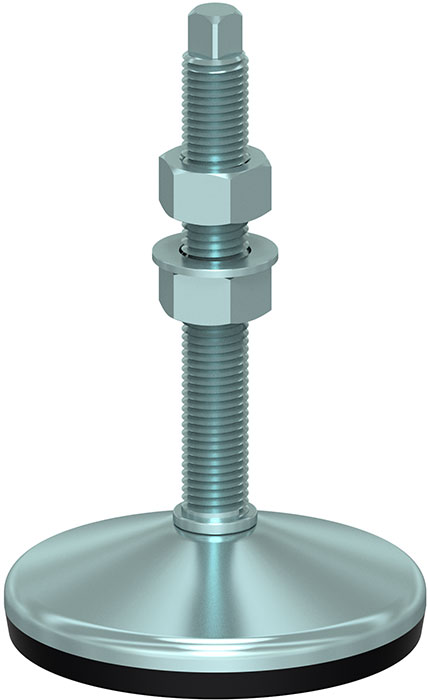

Zinc Steel Anti-Vibration Foot, Articulated Screw, Vulcanized Rubber

Mild steel zinc-plated machine mount with vulcanized NBR 80 shore rubber pad and a tilted zinc screw stem with top square adjusting slot, supplied with 2 locking nuts, 1 locking washer and 1 standard washer

Strenghts

Economic solution, light loads, easy to use

Applications

Light to medium applications with simple vibration problems

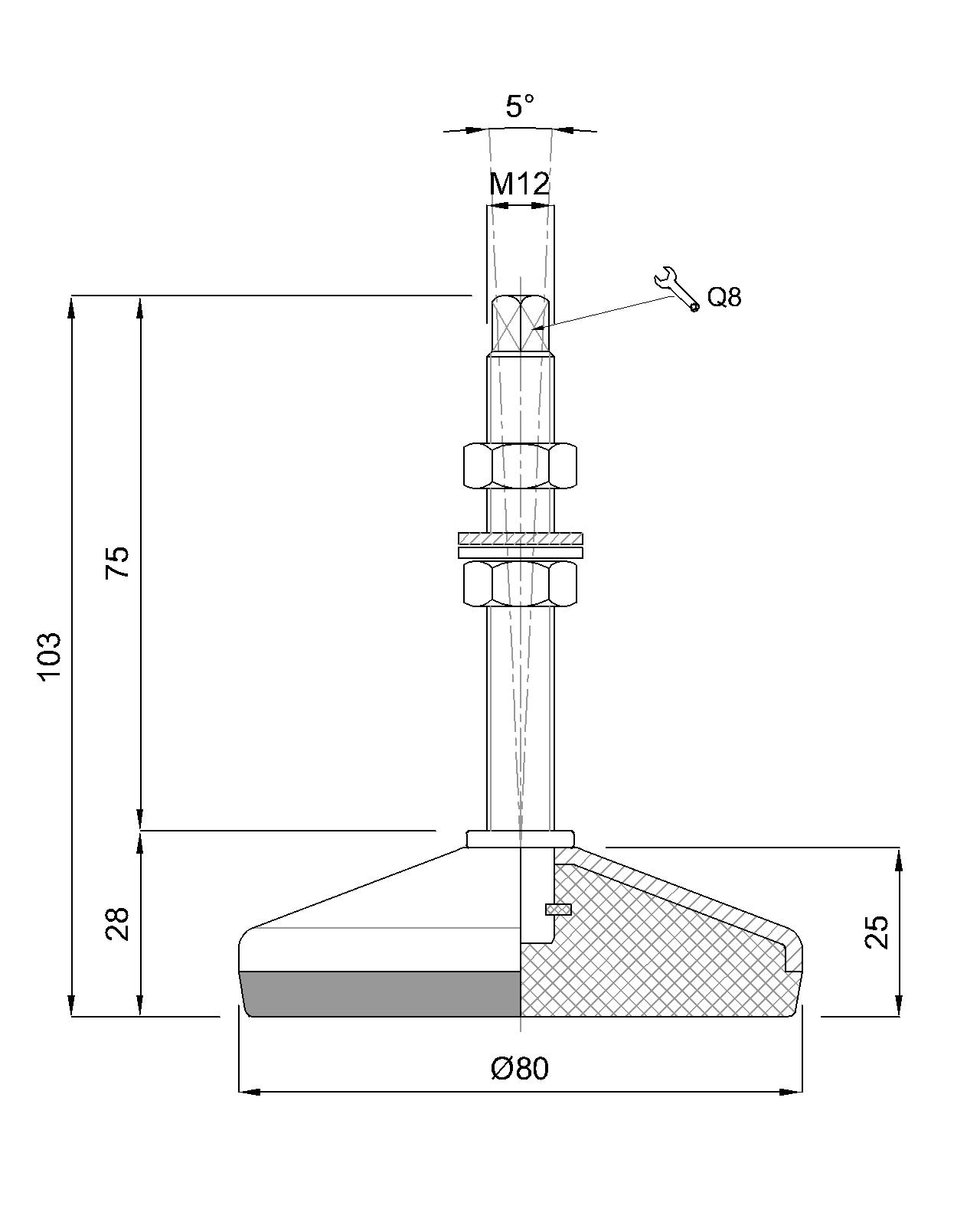

CODE 28000Z
SIZE (F)M12x1,75
FLOOR DISTANCE (A)28
STEM LENGTH (B)75,00
BASE SIZE (D)80
BASE HEIGHT (G)25
TOTAL HEIGHT (H)103,00
REGULATION (SW)TOP SQUARE 8
RUBBERFDA Black NBR 80 Shore
TREATMENTZINC-PLATED
WEIGHT (gr)338
LOAD (Newton)2500/4500
28000Z
Zinc-Steel-Anti-Vibration-Foot-Articulated-Screw-Vulcanized-Rubber-80
