Martin Product data sheet
Polyamide-Foot-Mild-Steel-Screw-Articulated
Polyamide-Foot-Mild-Steel-Screw-Articulated-103-M16-20

10327

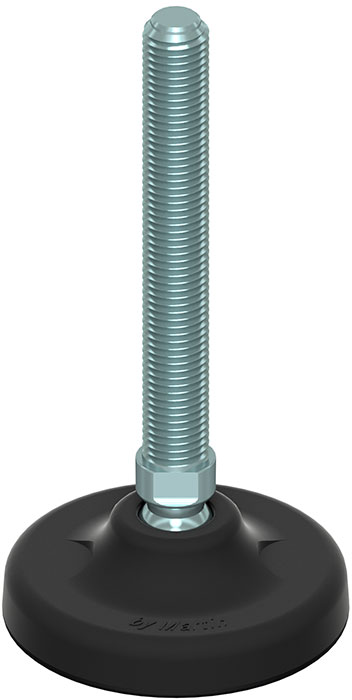

Polyamide Foot, Mild Steel Screw, Articulated, Antislip

Sphere glass reinforced polyamide base with a NBR anti-slip pad 70 shore and an articulated mild steel galvanized screw. Option for bolt/down holes. The spindle is made from round bar

Strenghts

30° Wide articulation, antislip pad

Applications

General all-purpose product

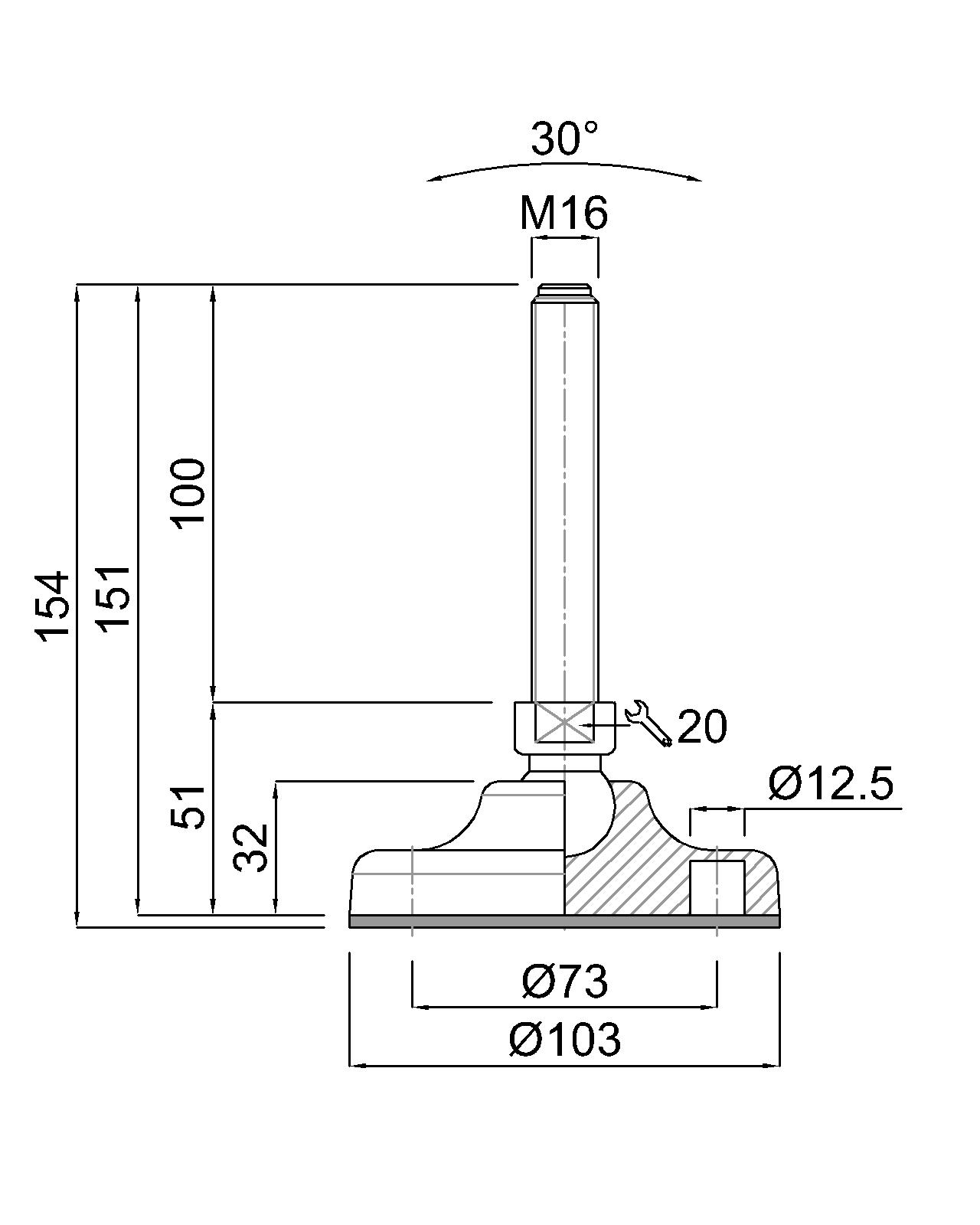

CODE 10327
SIZE (F)M16x2
FLOOR DISTANCE (A)51
STEM LENGTH (B)100,00
BASE SIZE (D)103
BASE HEIGHT (G)32
TOTAL HEIGHT (H)154,00
HOLE/S DISTANCE (I)73
REGULATION (SW)20
RUBBERFDA Black NBR 70 Shore
TREATMENTZINC-PLATED
WEIGHT (gr)400
LOAD (Newton)25000
10327
Polyamide-Foot-Mild-Steel-Screw-Articulated-103
