Martin Product data sheet
Polyamide-Foot-Stainless-Steel-Screw-Articulated
Polyamide-Foot-Stainless-Steel-Screw-Articulated-65-M16

10065

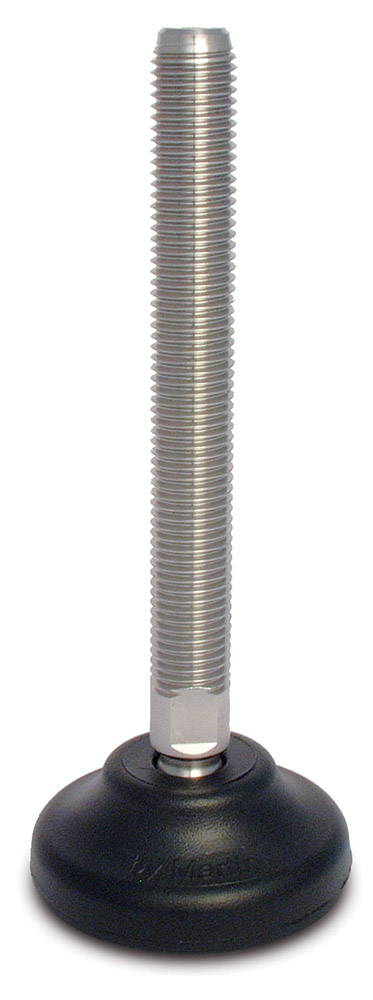

Polyamide Foot, Stainless Steel Screw, Articulated, Antislip

Sphere glass reinforced polyamide base with a NBR anti-slip pad 70 shore and an articulated AISI 304 stainless steel screw. The spindle is made from round bar

Strenghts

30° Wide articulation, stainless steel screw, antislip pad

Applications

General all-purpose product, with focus on applications where stainless steel is mandatory

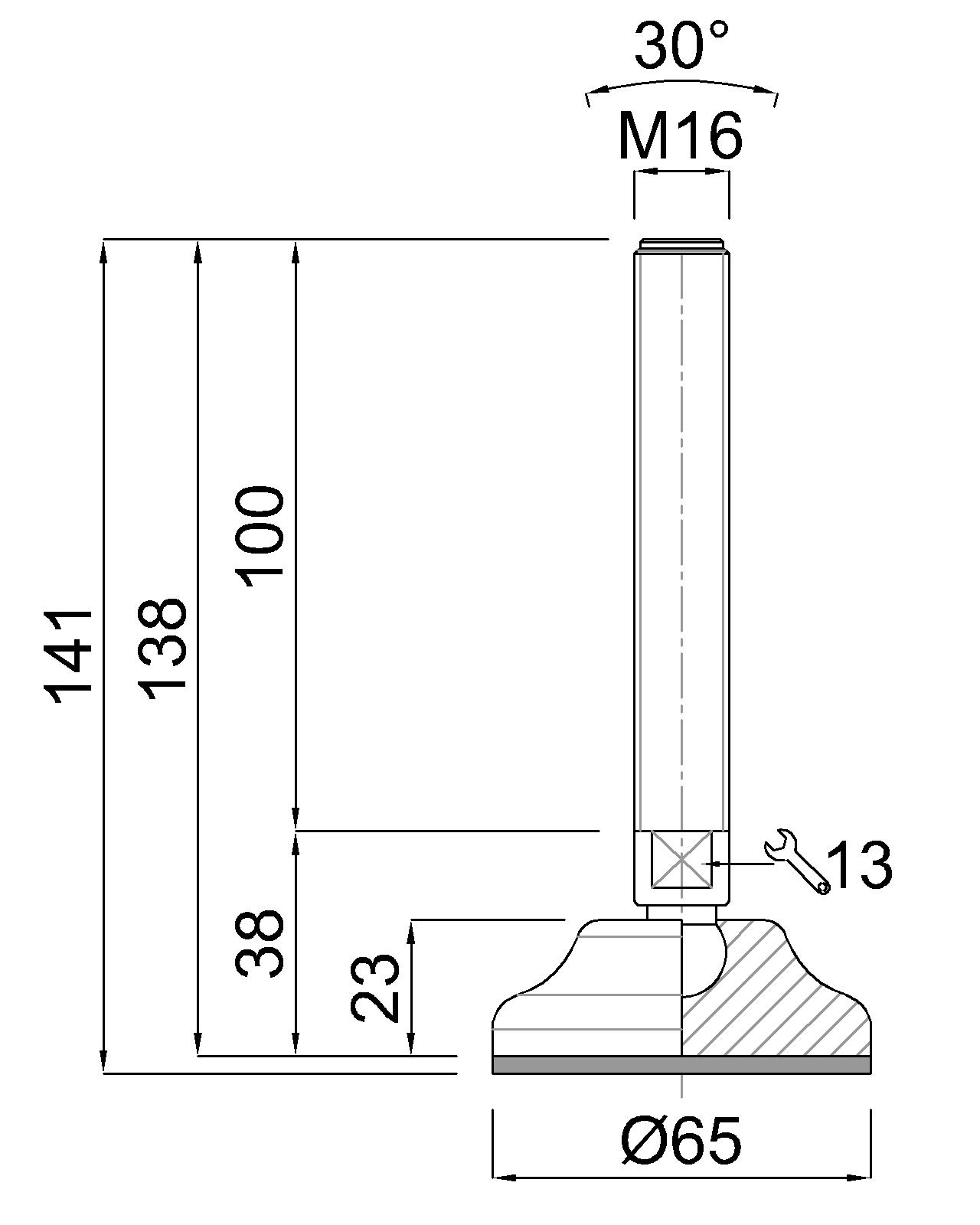

CODE 10065
SIZE (F)M16x2
FLOOR DISTANCE (A)38.00
STEM LENGTH (B)100,00
BASE SIZE (D)65
BASE HEIGHT (G)23
TOTAL HEIGHT (H)141,00
REGULATION (SW)13
RUBBERFDA Black NBR 70 Shore
TREATMENTTURNED
WEIGHT (gr)216
LOAD (Newton)15000
10065
Polyamide-Foot-Stainless-Steel-Screw-Articulated-65
