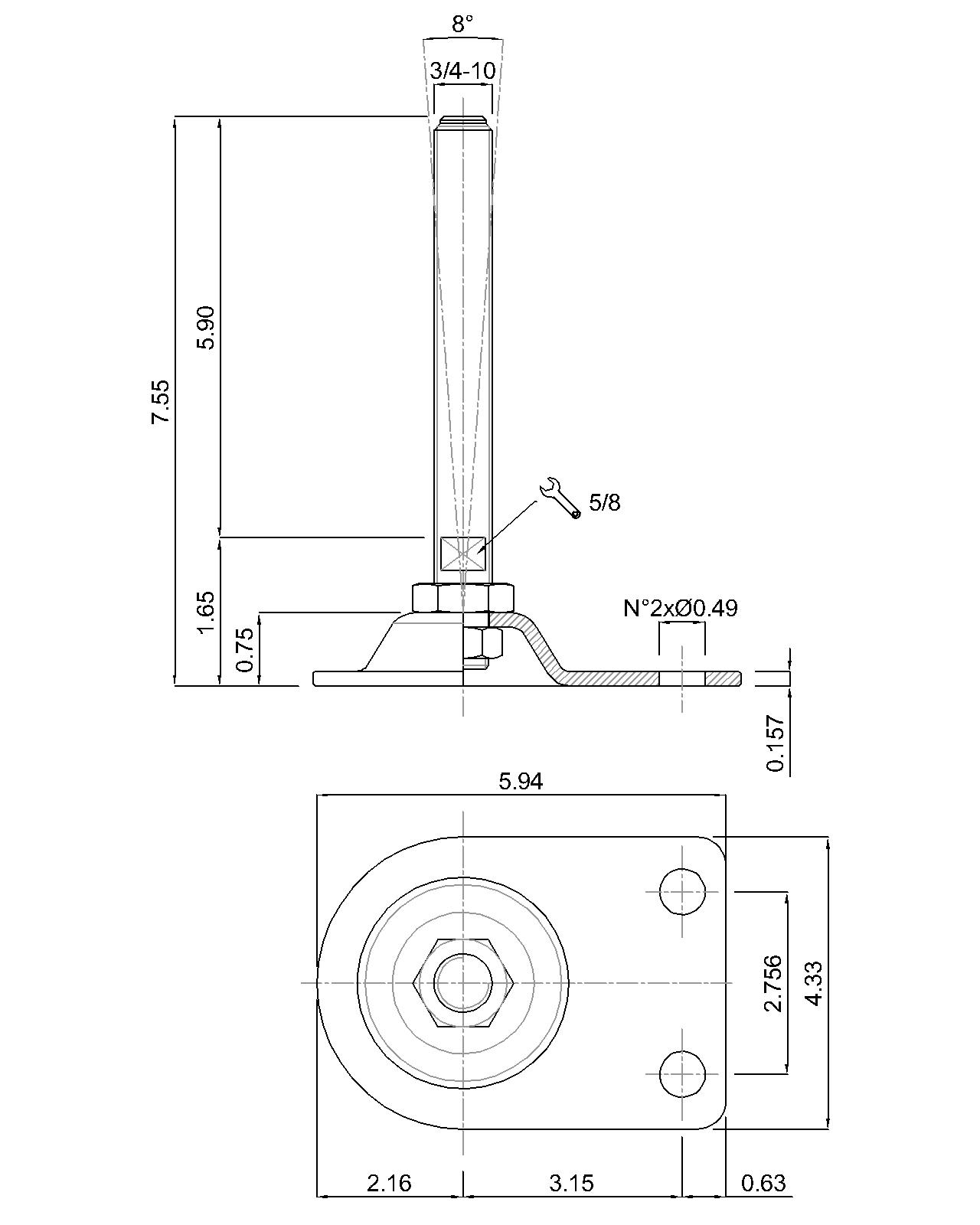

A15674Z/FIX

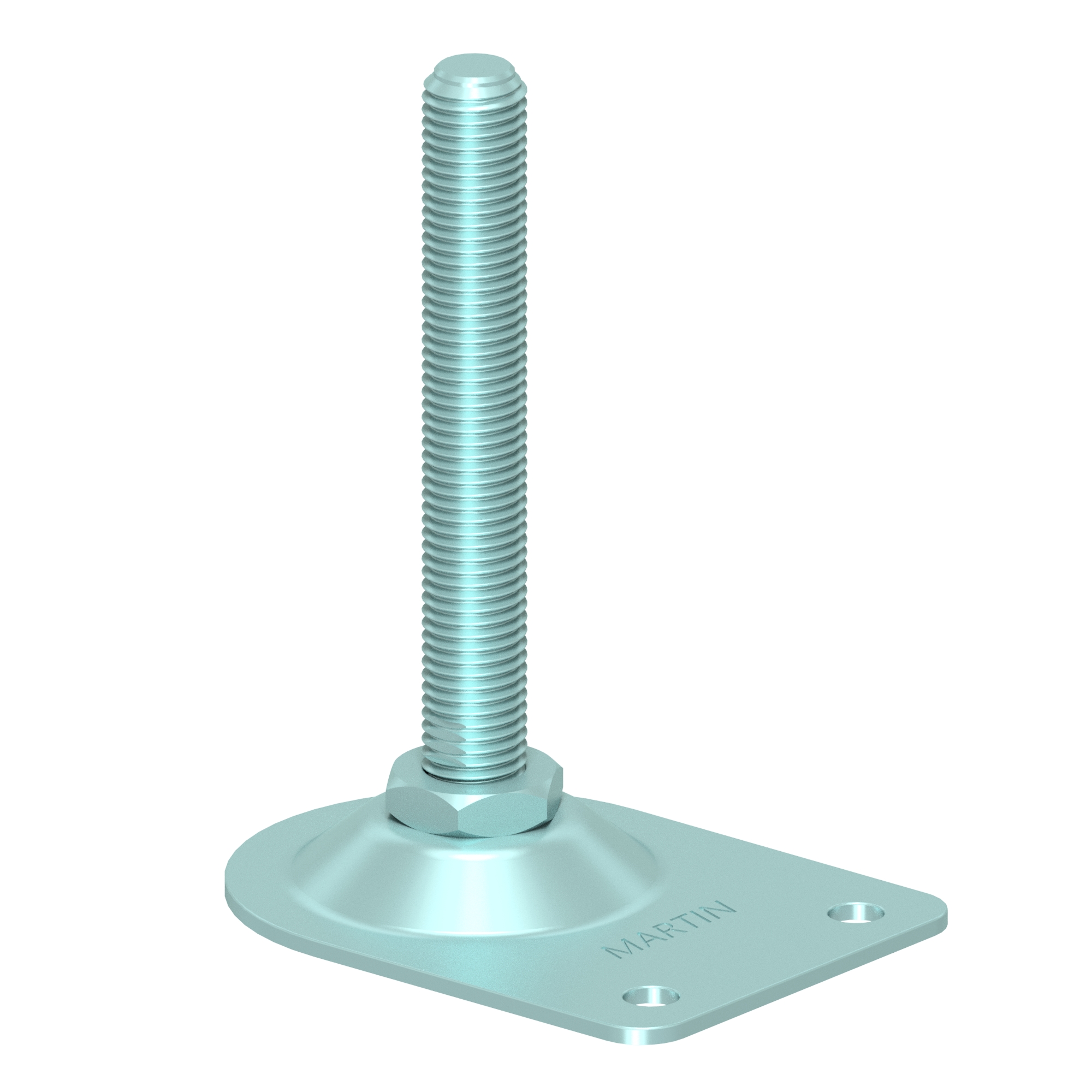

Zinc Steel Foot, Stamped, Articulated/Fix, Bolt/Down

A sturdy stamped galvanized mild steel base, duck-foot shape, with 2 bolt/down holes on the side. The tilted galvanized mild steel screw can be turned in to a completely fix solution by using the bottom locking nut, provided. This model allows more room between the stem and the bolt/down holes, making the installation much more confortable.

Strenghts

Stamped base, duck-foot shape, with 2 bolt/down holes, versatile product, rather economic, good performance, sturdy, option to fasten the bottom locking nut to the base and turn the foot in to a completely fix solution, wider distance between the holes and the screw, making it ideal when bolt/down is a must

Applications

Conveyors, palletizers, airports, scaffolds, machines
