Martin Product data sheet
Stainless-Steel-Foot-Heavy-Duty-with-Ball
Stainless-Steel-Foot-Heavy-Duty-with-Ball-472
Stainless-Steel-Foot-Heavy-Duty-with-Ball-472-3/4-2FLATS3/4
A10620

A10620

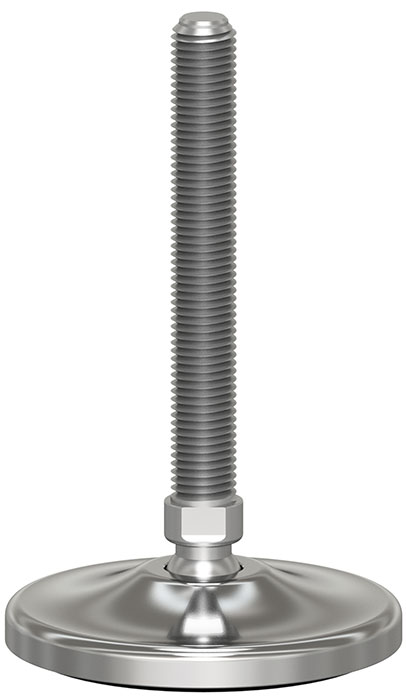

Stainless Steel Foot, Heavy Duty with Ball

Polished AISI 304 stainless steel solid foot with a wide articulation spindle. The screw if made from a round bar

Strenghts

30° Wide articulation, stainless steel, solid

Applications

Any application where stainless steel is required in conjuction with heavy loads requirements

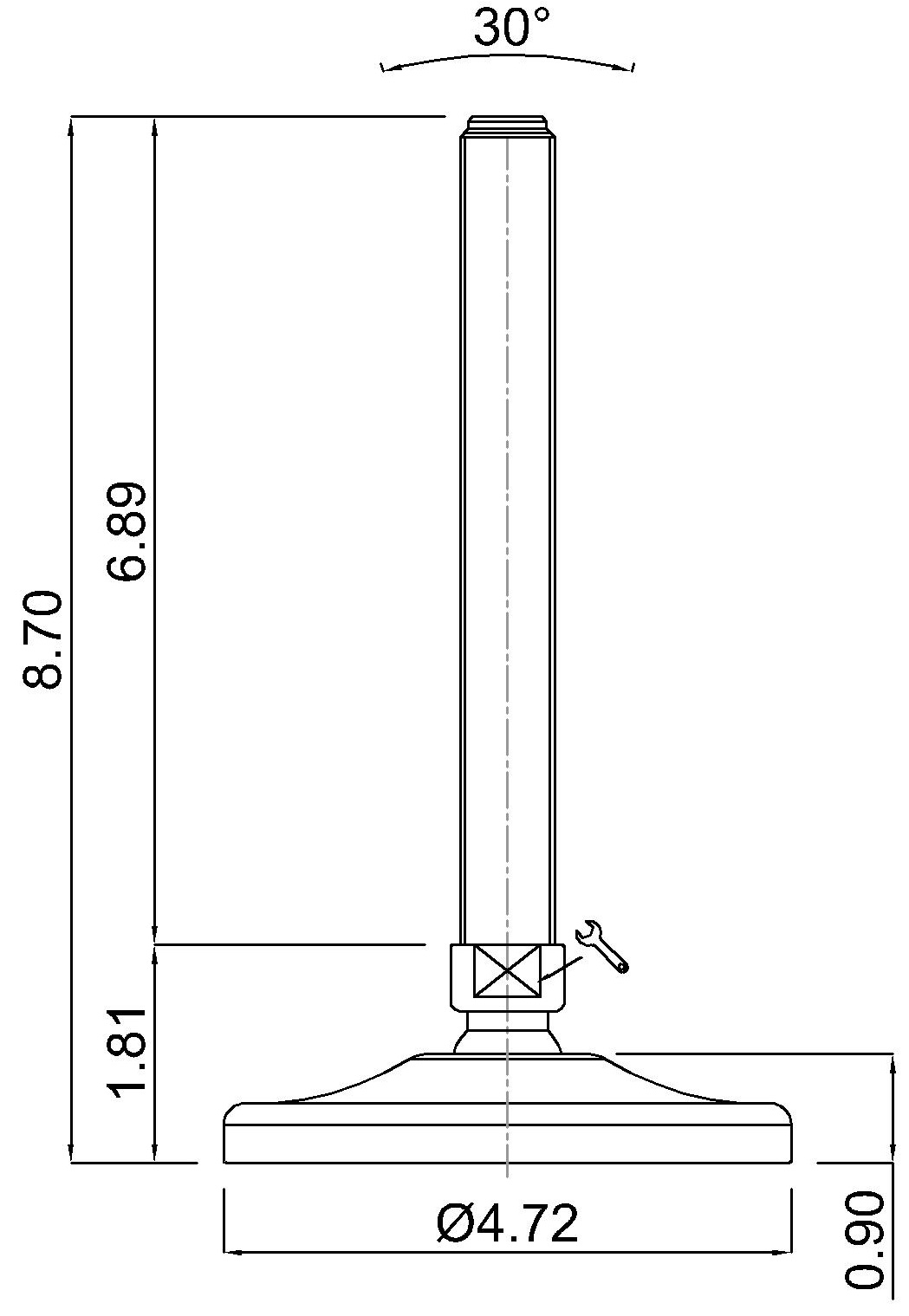

CODE A10620
SIZE (F)3/4"-10
FLOOR DISTANCE (A)1,81
STEM LENGTH (B)6,89
BASE SIZE (D)4,72
BASE HEIGHT (G)0,91
TOTAL HEIGHT (H)8,70
H18,82
REGULATION (SW)2FLATS 3/4
RUBBERNO
TREATMENTPOLISHED
WEIGHT (gr)1415
LOAD (Newton)45000
A10620
Stainless-Steel-Foot-Heavy-Duty-with-Ball-472
