Martin Product data sheet
Stainless-Steel-Foot-Heavy-Duty-with-Ball
Stainless-Steel-Foot-Heavy-Duty-with-Ball-256
Stainless-Steel-Foot-Heavy-Duty-with-Ball-256-5/8-2FLATS1/2

A10502

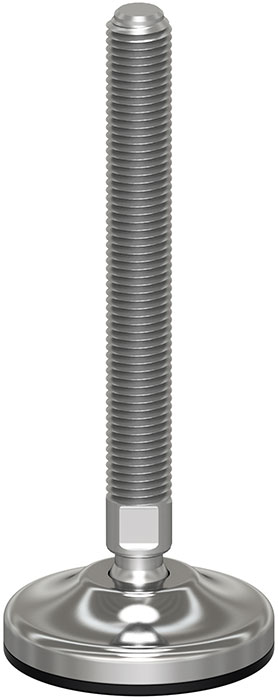

Stainless Steel Foot, Heavy Duty with Ball

Polished AISI 304 stainless steel solid foot with a wide articulation spindle. The screw if made from a round bar

Strenghts

30° Wide articulation, stainless steel, solid

Applications

Any application where stainless steel is required in conjuction with heavy loads requirements

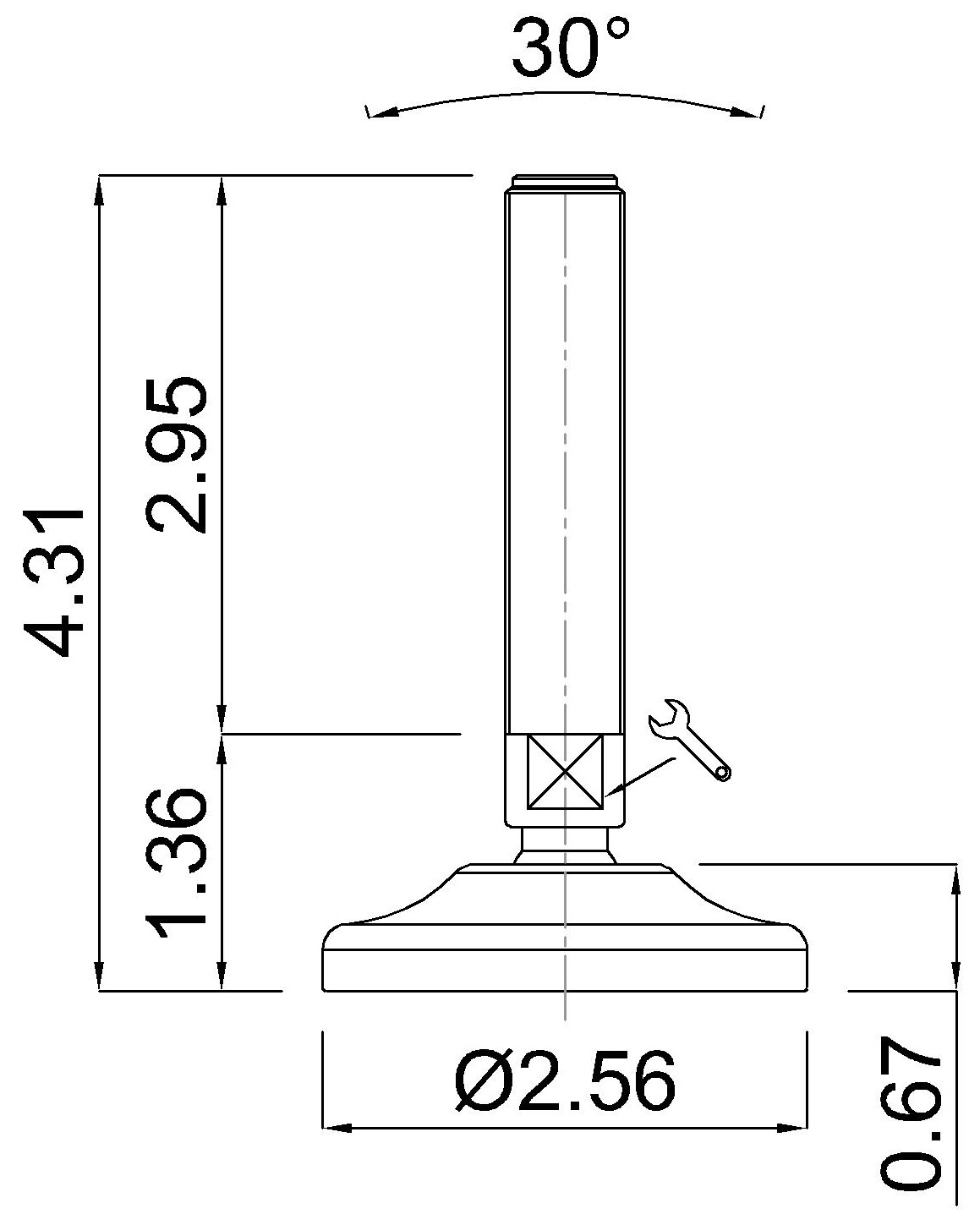

CODE A10502
SIZE (F)5/8"-11
FLOOR DISTANCE (A)1,36
STEM LENGTH (B)2,95
BASE SIZE (D)2,56
BASE HEIGHT (G)0,67
TOTAL HEIGHT (H)4,31
H14,43
REGULATION (SW)2FLATS 1/2
RUBBERNO
TREATMENTPOLISHED
WEIGHT (gr)353
LOAD (Newton)20000
A10502
Stainless-Steel-Foot-Heavy-Duty-with-Ball-256
