Martin Product data sheet
Stainless-Steel-Foot-Heavy-Duty-with-Ball
Stainless-Steel-Foot-Heavy-Duty-with-Ball-157
Stainless-Steel-Foot-Heavy-Duty-with-Ball-157-5/1-HEX1/2

A10439

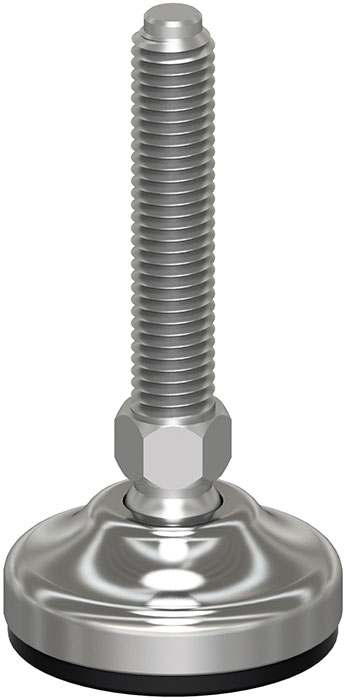

Stainless Steel Foot, Heavy Duty with Ball

Polished AISI 304 stainless steel solid foot with a wide articulation spindle. The screw if made from hexagonal bar

Strenghts

30° Wide articulation, stainless steel, solid, hexagonal wrench

Applications

Any application where stainless steel is required in conjuction with heavy loads requirements

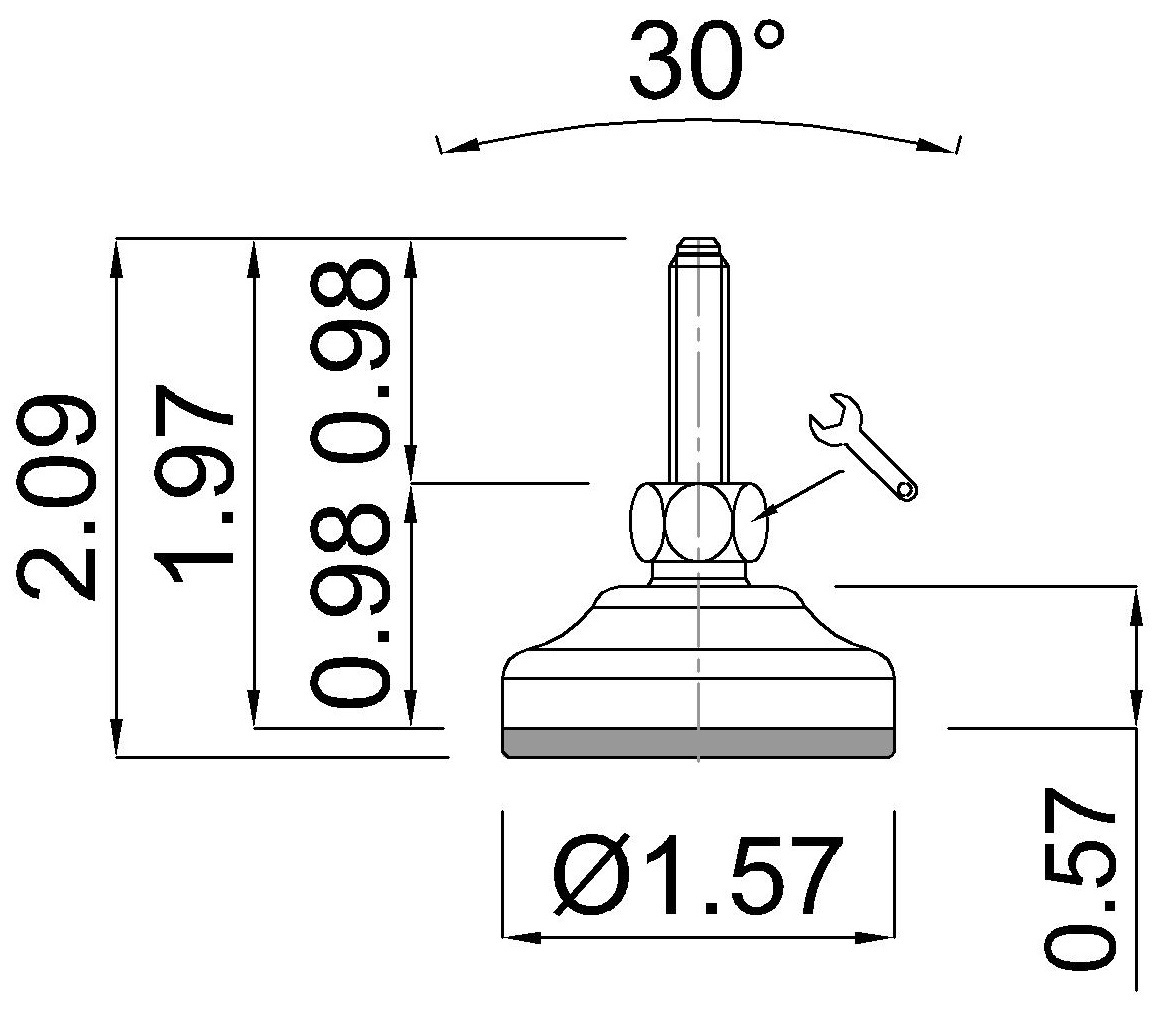

CODE A10439
SIZE (F)5/16"-18
FLOOR DISTANCE (A)0,98
STEM LENGTH (B)0,98
BASE SIZE (D)1,57
BASE HEIGHT (G)0,57
TOTAL HEIGHT (H)1,97
TOTAL HEIGHT (H1)2,09
REGULATION (SW)HEX 1/2
RUBBERNO
TREATMENTPOLISHED
LOAD (Newton)7000
A10439
Stainless-Steel-Foot-Heavy-Duty-with-Ball-157
