Martin Product data sheet
Polyamide-Foot-Stainless-Steel-Screw-Articulated
Polyamide-Foot-Stainless-Steel-Screw-Articulated-405
Polyamide-Foot-Stainless-Steel-Screw-Articulated-405-5/8-2FLATS3/4

A10115

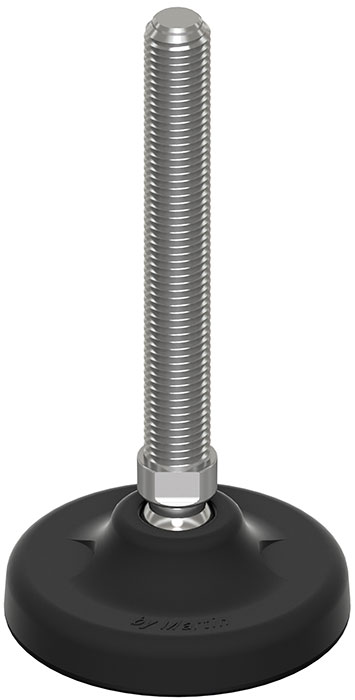

Polyamide Foot, Stainless Steel Screw, Articulated

Sphere glass reinforced polyamide base with an articulated AISI 304 stainless steel screw. Option for bolt/down holes. The spindle is made from round bar

Strenghts

30° Wide articulation, stainless steel screw

Applications

General all-purpose product, with focus on applications where stainless steel is mandatory

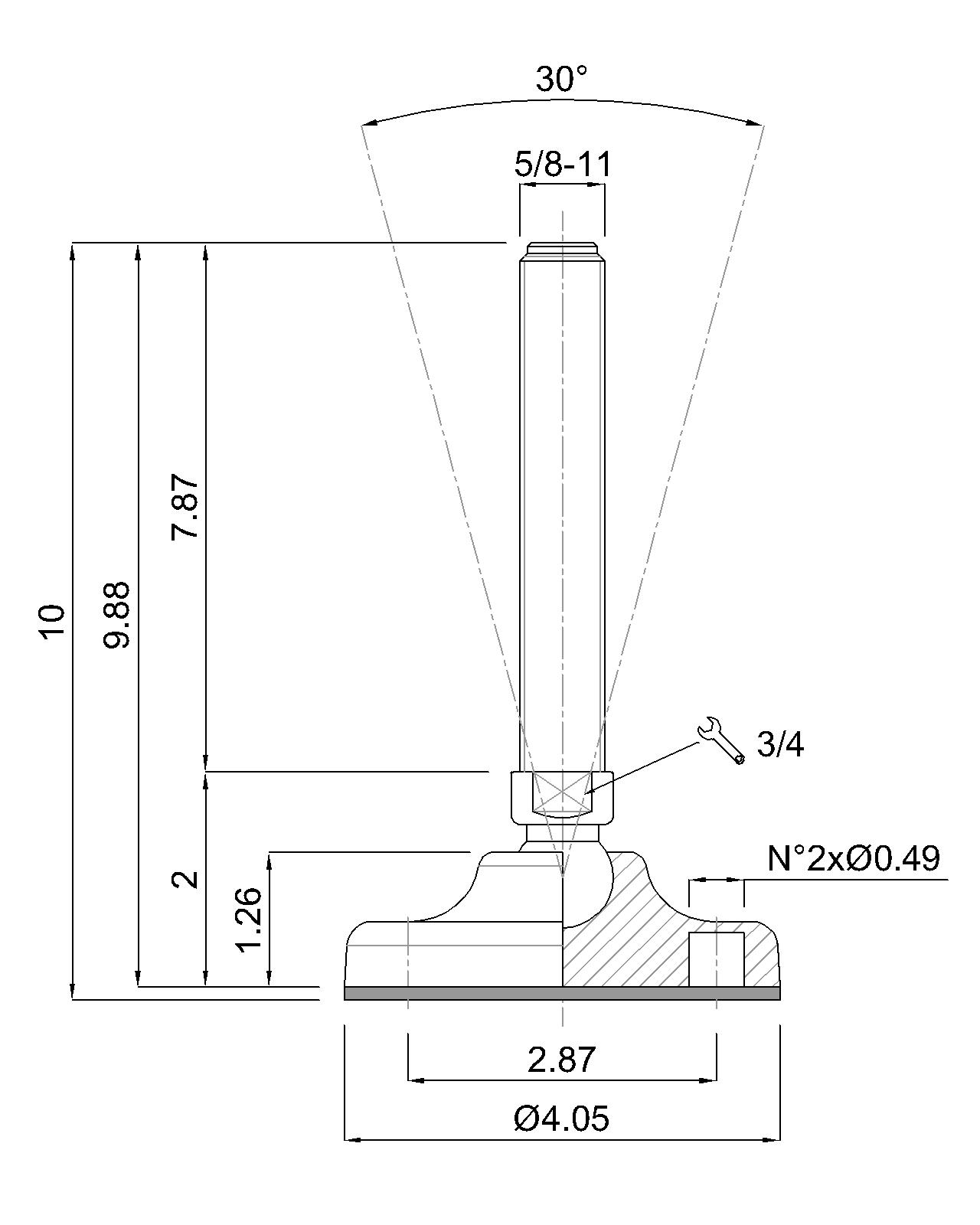

CODE A10115
SIZE (F)5/8"-11
FLOOR DISTANCE (A)2
STEM LENGTH (B)7,87
BASE SIZE (D)4,05
BASE HEIGHT (G)1,26
TOTAL HEIGHT (H)9,88
TOTAL HEIGHT (H1)10,00
HOLE/S DISTANCE (I)2,87
REGULATION (SW)2FLATS 3/4
RUBBERNO
TREATMENTTURNED
WEIGHT (gr)422
LOAD (Newton)25000
A10115
Polyamide-Foot-Stainless-Steel-Screw-Articulated-405
