Martin Product data sheet
27000-F
27000-F

27000/F

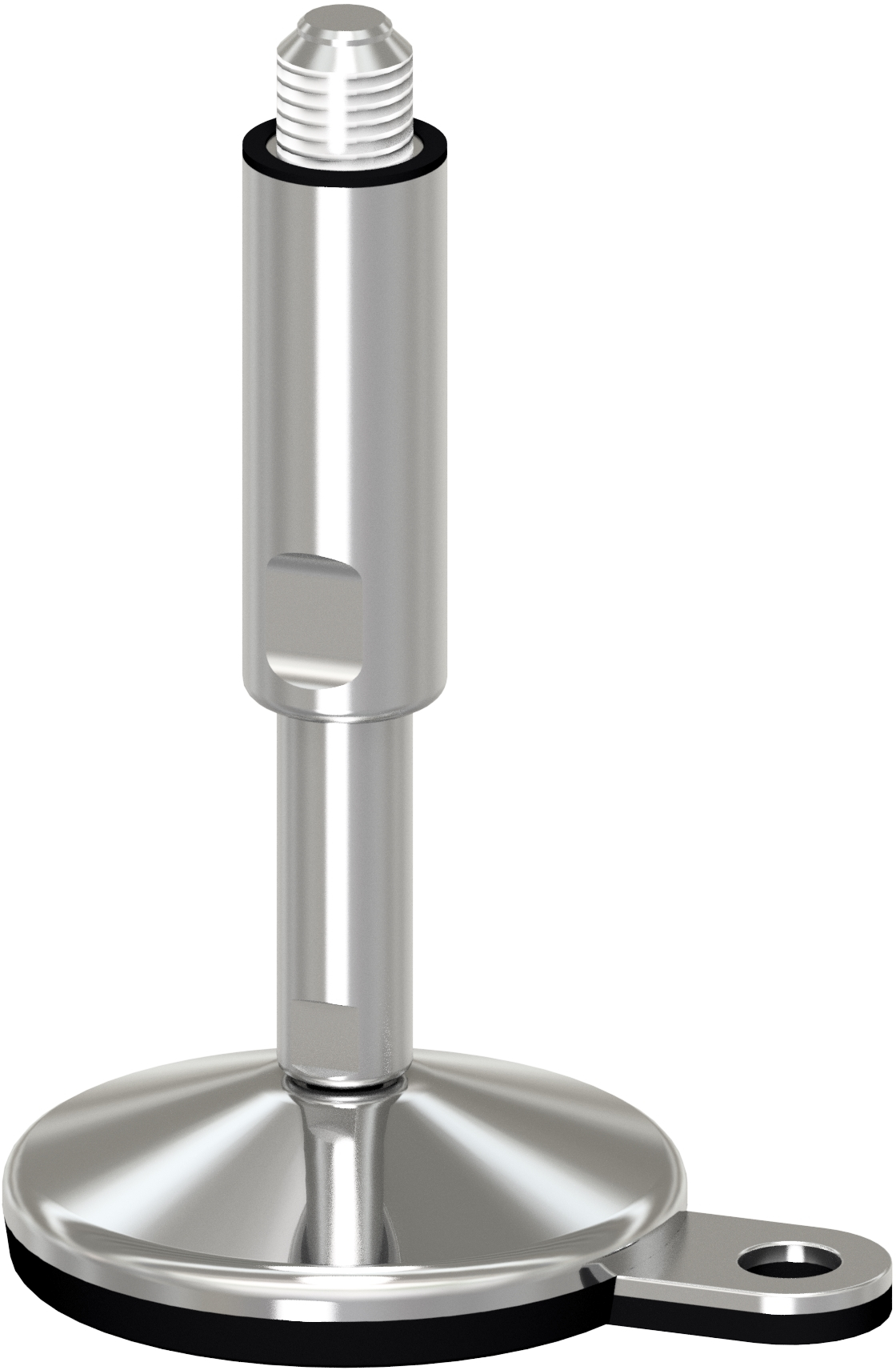

Stainless Steel Foot, Hygienic Screw, Articulated, Bolt/Down, Vulcanized Rubber, Teknoclean

Vibro-polished AISI 304 stainless steel machine foot, bolt/down lug, vulcanized NBR 80 shore rubber pad with a fairly articulated half-threadless hygienic stem and a stainless steel thread-covering sleeve, mounted with an exteranl top and internal bottom black silicone gaskets to prevent dirt intrusion, USDA accepted.

Strenghts

Hygienic foot with half-threadedless spindle and silicone gaskets mounted covering sleeve for the threaded part, vulcanized base, bolt/down option, USDA approved

Applications

Hygienic environments, food, pharma, dairy, meat processing

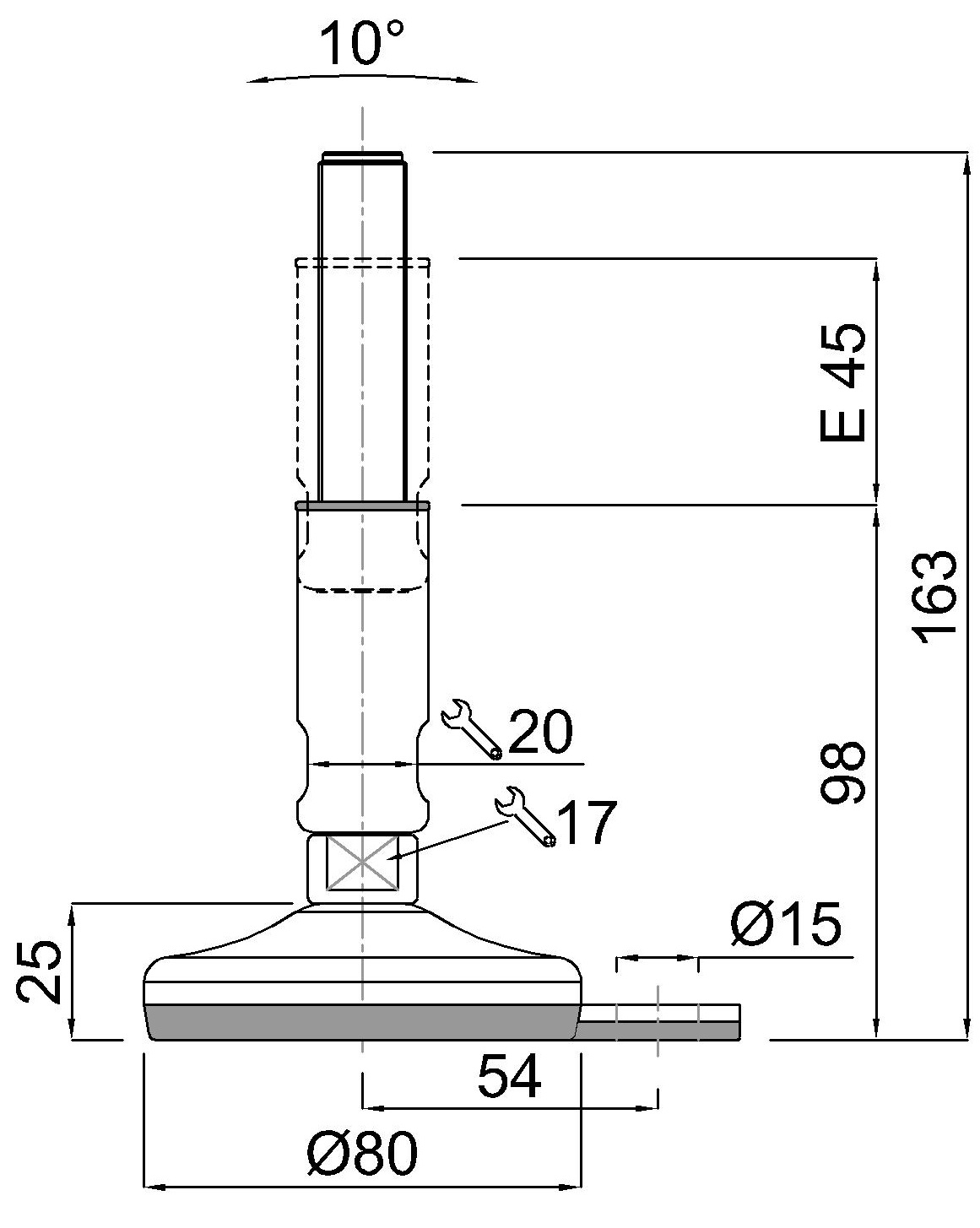

CODE 27000/F
SIZE (F)M16x2
FLOOR DISTANCE (A)38
STEM LENGTH (B)125,00
BASE SIZE (D)80
BUSHING DIAMETER (D1)24
REGULATION STROKE (E)40
BASE HEIGHT (G)25
TOTAL HEIGHT (H)163,00
MINIMUM HEIGHT (H2)98
HOLE/S DISTANCE (I)54
REGULATION (SW)17/20
RUBBERFDA Black NBR 80 Shore
TREATMENTTURNED FINISHING
WEIGHT (gr)553
LOAD (Newton)10000
27000-F
Stainless-Steel-Foot-Hygienic-Screw-Articulated-Bolt-Down-Vulcanized-Rubber-Teknoclean-80
