Martin Product data sheet
Polyamide-Foot-Mild-Steel-Screw-Articulated-16
Polyamide-Foot-Mild-Steel-Screw-Articulated-16-65
Polyamide-Foot-Mild-Steel-Screw-Articulated-16-65-M24-20

18704/65

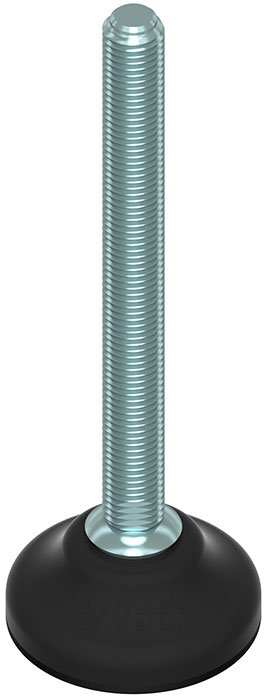

Polyamide Foot, Mild Steel Screw, Articulated 16°

Sphere glass reinforced polyamide base and an semi-articulated mild steel zinc-plated screw. The spindle is made from threaded bar

Strenghts

Screw economic-type, bottom washer anti-screw-pop-up

Applications

Ideal product for high to very high volumes, conveyors generally speaking, but good for all applications with medium to light loads requirement

CODE 18704/65
SIZE (F)M24x3
FLOOR DISTANCE (A)41
STEM LENGTH (B)150,00
BASE SIZE (D)65
BASE HEIGHT (G)29
TOTAL HEIGHT (H)191,00
REGULATION (SW)20
RUBBERNO
TREATMENTTURNED
LOAD (Newton)18000
18704-65
Polyamide-Foot-Mild-Steel-Screw-Articulated-16-65
