Martin Product data sheet
Polyamide-Foot-Stainless-Steel-Screw
Polyamide-Foot-Stainless-Steel-Screw-123-M20

12850

Polyamide Foot, Stainless Steel Screw

Sphere glass reinforced polyamide base with option for bolting/down holes, fix AISI 304 stainless steel screw. The spindle is made from round bar

Strenghts

Heavy loads but economic, stainless steel screw

Applications

General all-purpose product with a focus on medium to heavy duty conveyors or machines

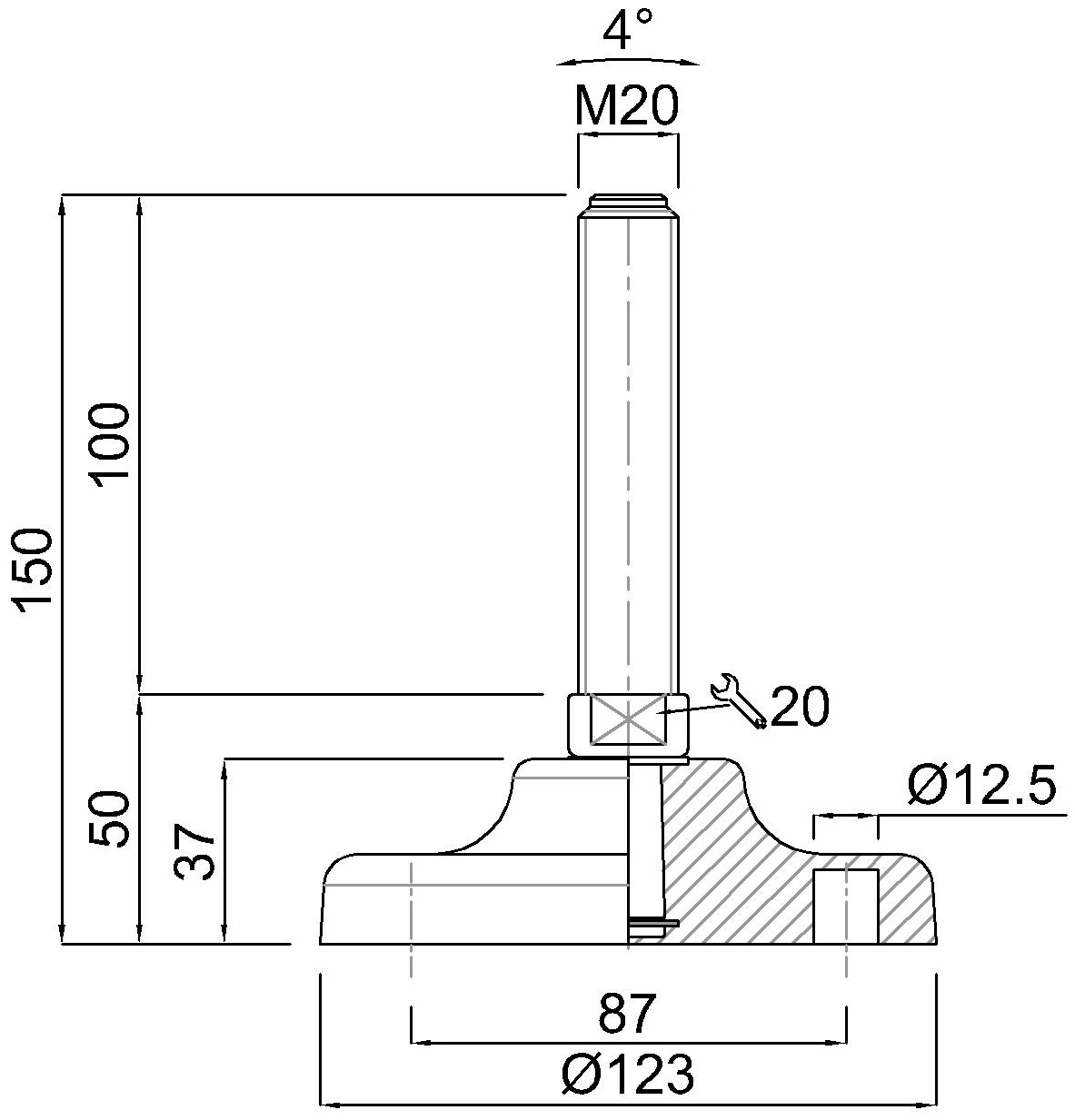

CODE 12850
SIZE (F)M20x2,5
FLOOR DISTANCE (A)50
STEM LENGTH (B)100,00
BASE SIZE (D)123
BASE HEIGHT (G)37
TOTAL HEIGHT (H)150,00
HOLE/S DISTANCE (I)87
REGULATION (SW)20
RUBBERNO
TREATMENTTURNED
WEIGHT (gr)451
LOAD (Newton)45000
12850
Polyamide-Foot-Stainless-Steel-Screw-123
