Martin Product data sheet
Stainless-Steel-Foot-Heavy-Duty-Articulated
Stainless-Steel-Foot-Heavy-Duty-Articulated-159
Stainless-Steel-Foot-Heavy-Duty-Articulated-159-M30-26

11483/30/P2

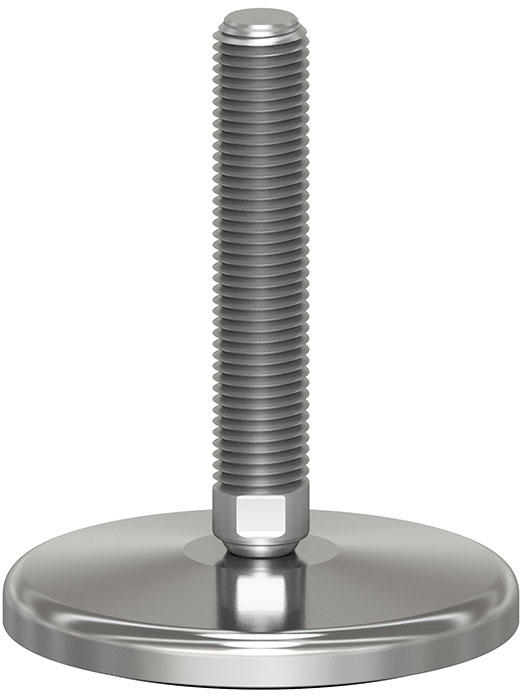

Stainless Steel Foot, Heavy Duty, Articulated, Antislip, fine-pitch thread

Polished AISI 304 stainless steel solid foot with a glued NBR 80 shore anti-slip pad and a fairly articulated stainless steel screw. The spindle is made from round bar

Strenghts

Solid, heavy loads, antislip pad

Applications

Tooling machines

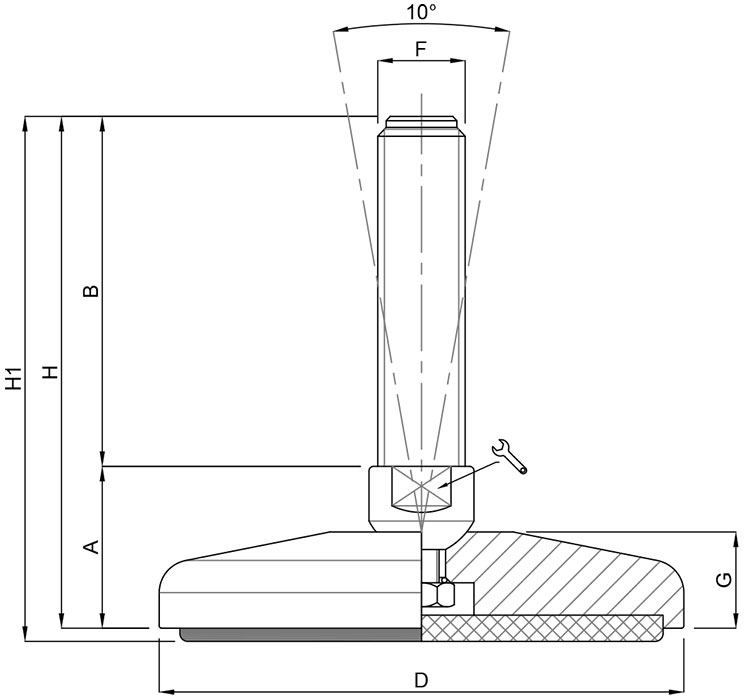

CODE 11483/30/P2
SIZE (F)M30x2
FLOOR DISTANCE (A)42
STEM LENGTH (B)150,00
BASE SIZE (D)159
BASE HEIGHT (G)23
TOTAL HEIGHT (H)195,00
REGULATION (SW)26
RUBBERFDA Black NBR 80 Shore
TREATMENTTURNED FINISHING
WEIGHT (gr)3574
LOAD (Newton)70000
