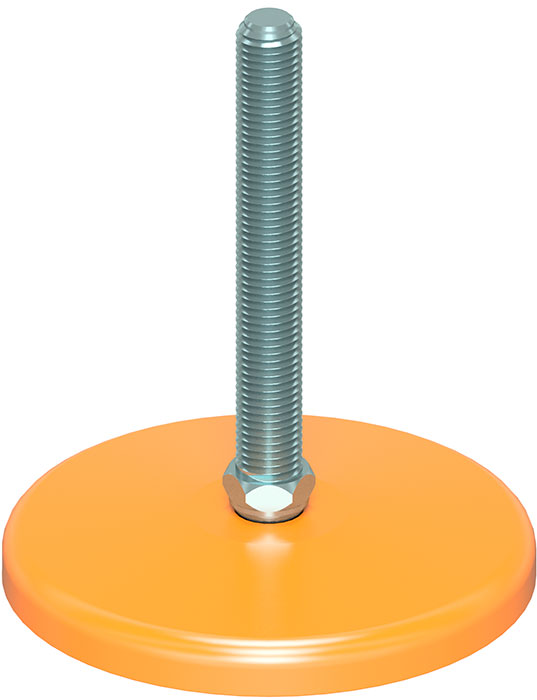

Painted Steel Foot, Heavy Duty, Articulated

Yellow painted mild steel solid foot with a fairly articulated mild steel galvanized screw. The spindle is made from hexagonal bar

Strenghts

Solid, heavy loads, hexagonal wrench

Applications

Tooling machines

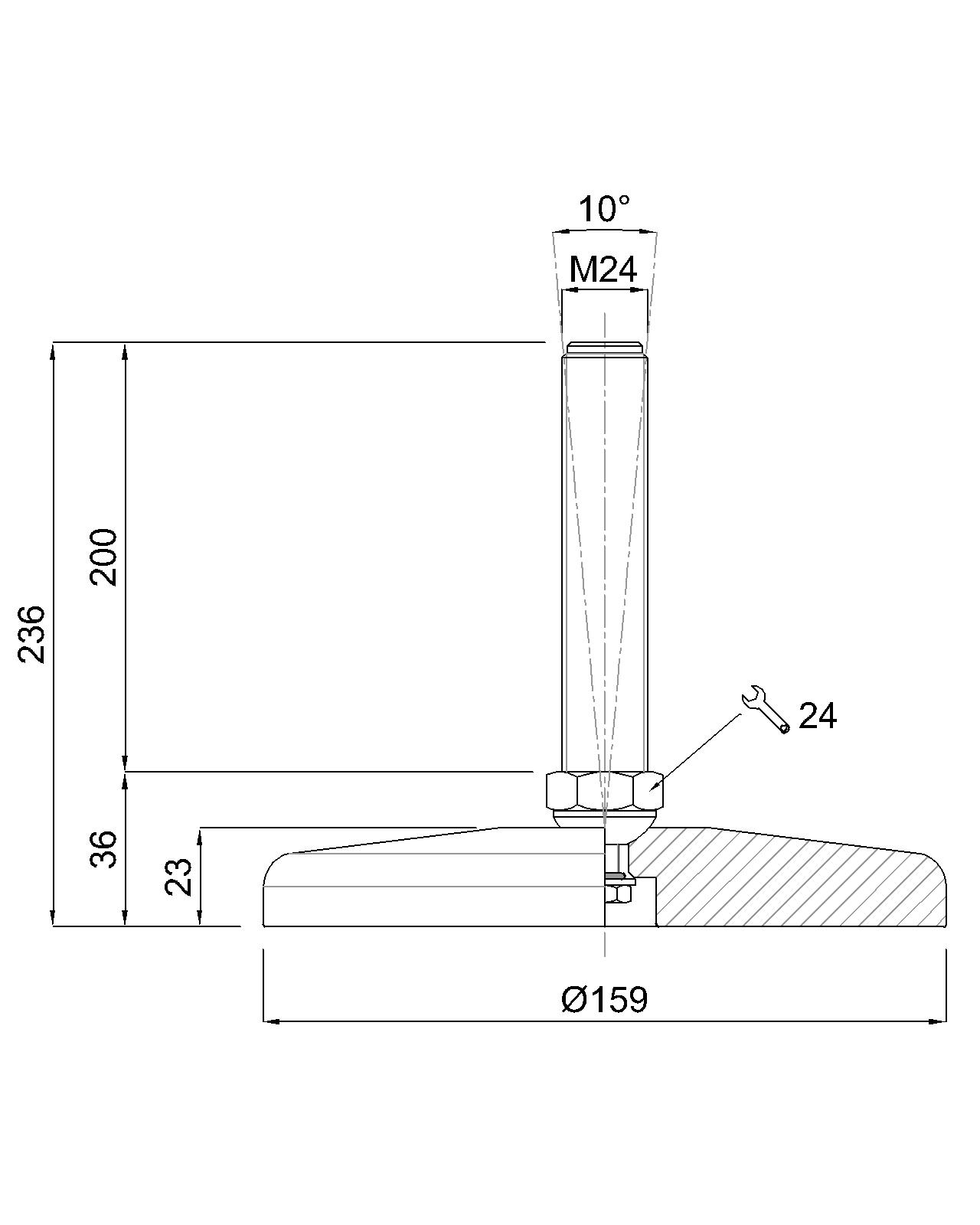

CODE 11450/24
SIZE (F)M24x3
FLOOR DISTANCE (A)36
STEM LENGTH (B)200,00
BASE SIZE (D)159
BASE HEIGHT (G)23
TOTAL HEIGHT (H)236,00
REGULATION (SW)HEX 24
RUBBERNO
TREATMENTPAINTED RAL1007
WEIGHT (gr)3212
LOAD (Newton)60000
