Martin Product data sheet
Polyamide-Foot-Mild-Steel-Screw-Articulated
Polyamide-Foot-Mild-Steel-Screw-Articulated-123-M20-20

10400

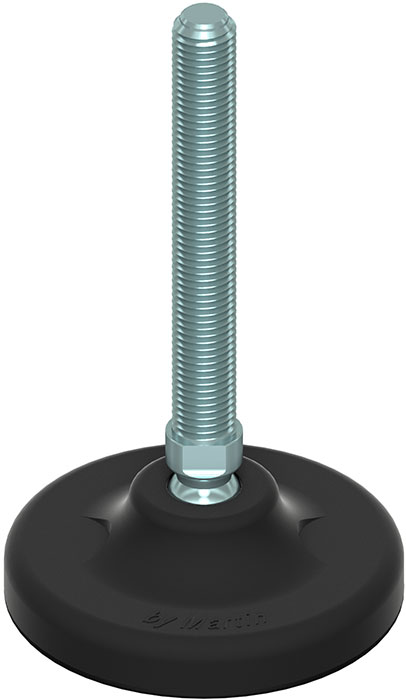

Polyamide Foot, Mild Steel Screw, Articulated

Sphere glass reinforced polyamide base with an articulated mild steel galvanized screw. Option for bolt/down holes. The spindle is made from round bar

Strenghts

30° Wide articulation

Applications

General all-purpose product

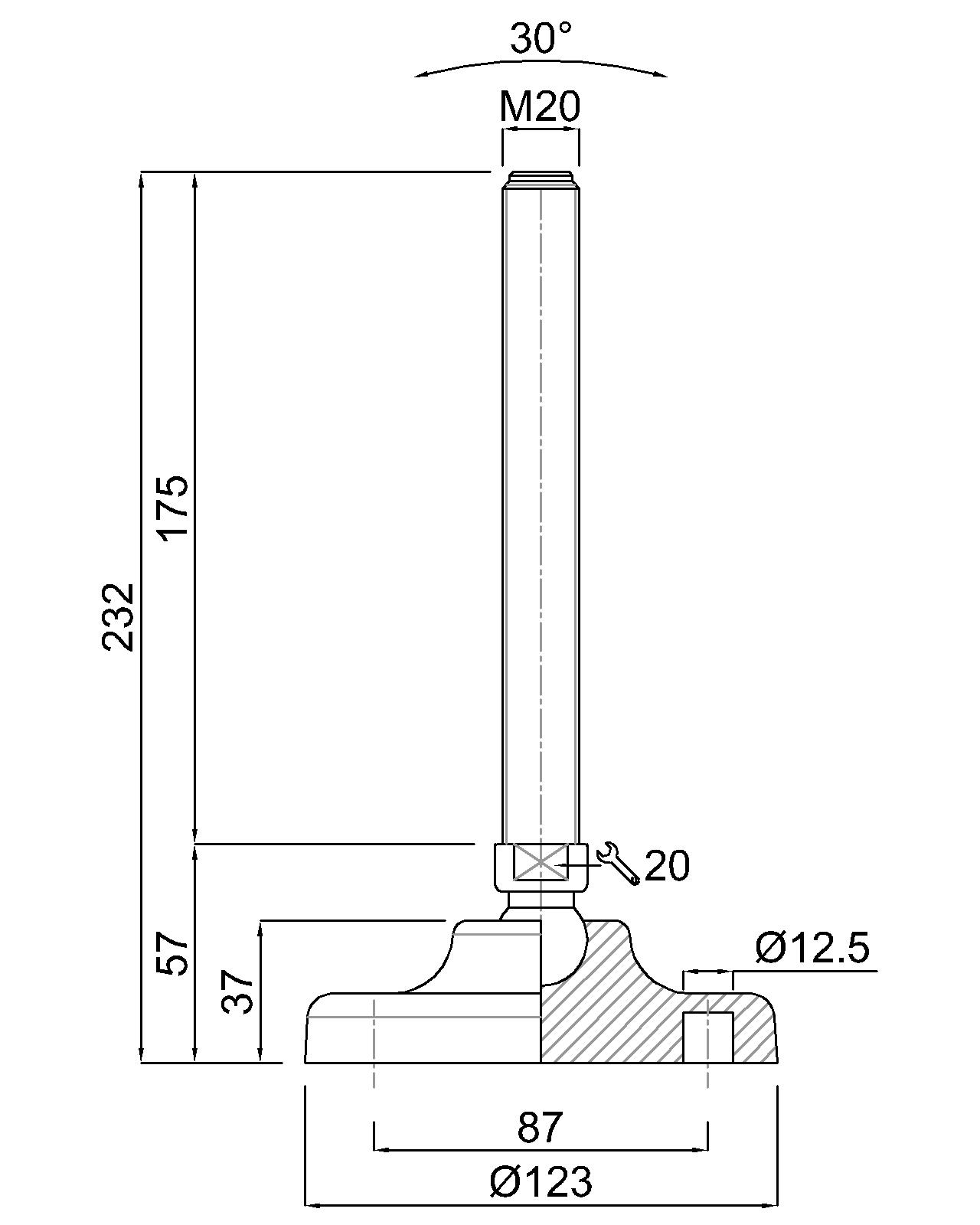

CODE 10400
SIZE (F)M20x2,5
FLOOR DISTANCE (A)57
STEM LENGTH (B)175,00
BASE SIZE (D)123
BASE HEIGHT (G)37
TOTAL HEIGHT (H)232,00
HOLE/S DISTANCE (I)87
REGULATION (SW)20
RUBBERNO
TREATMENTZINC-PLATED
WEIGHT (gr)603
LOAD (Newton)35000
10400
Polyamide-Foot-Mild-Steel-Screw-Articulated-123
