Martin Product data sheet
Polyamide-Foot-Mild-Steel-Screw-Articulated
Polyamide-Foot-Mild-Steel-Screw-Articulated-83-HEX14

10303/14

Polyamide Foot, Mild Steel Screw, Articulated, Antislip

Sphere glass reinforced polyamide base with a NBR anti-slip pad 70 shore and an articulated mild steel galvanized screw. Option for bolt/down holes. The spindle is made from hexagonal bar

Strenghts

30° Wide articulation, hexagonal wrench, antislip pad

Applications

General all-purpose product

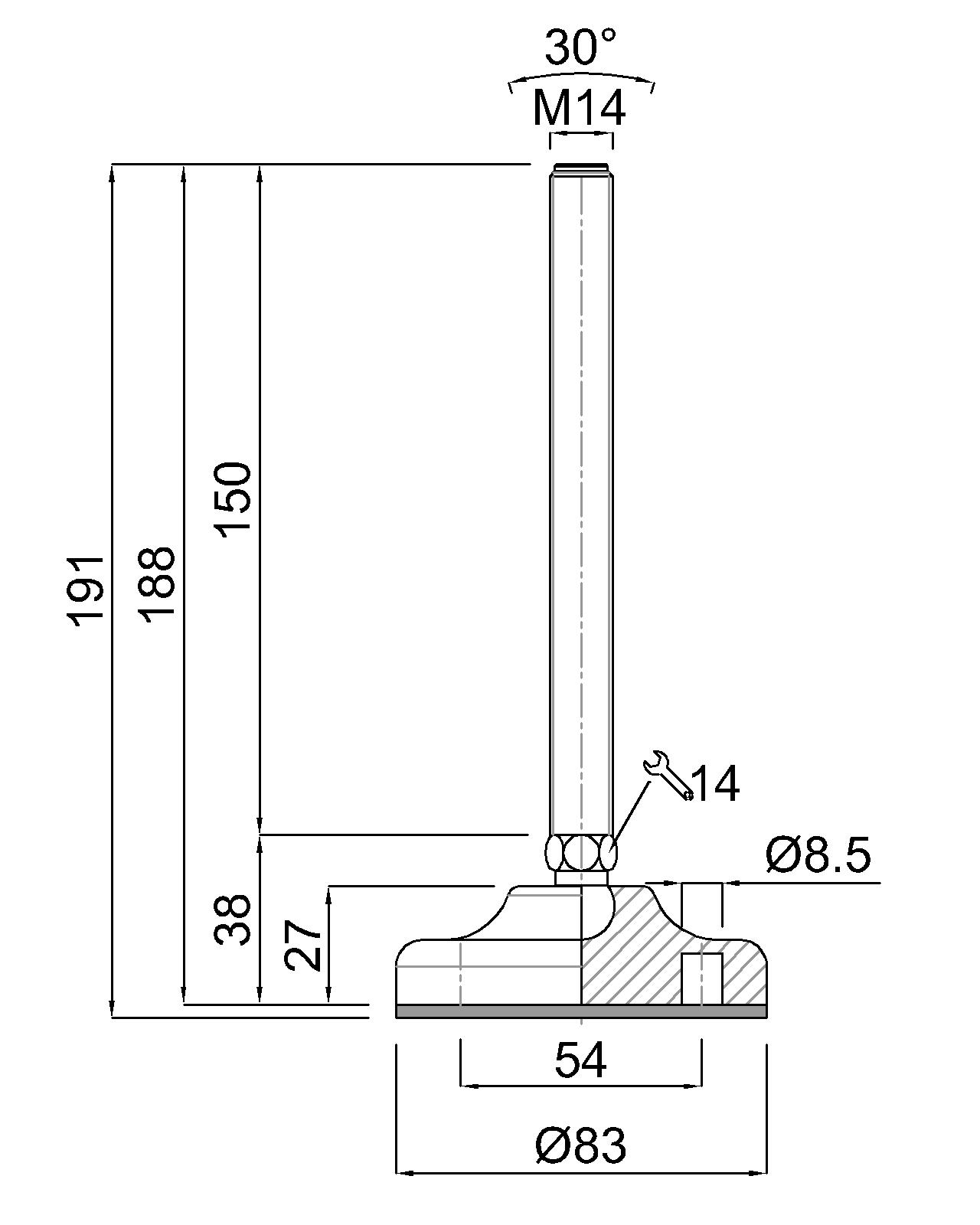

CODE 10303/14
SIZE (F)M14x2
FLOOR DISTANCE (A)38
STEM LENGTH (B)150,00
BASE SIZE (D)83
BASE HEIGHT (G)27
TOTAL HEIGHT (H)191,00
HOLE/S DISTANCE (I)54
REGULATION (SW)HEX 14
RUBBERFDA Black NBR 70 Shore
TREATMENTZINC-PLATED
WEIGHT (gr)276
LOAD (Newton)20000
10303-14
Polyamide-Foot-Mild-Steel-Screw-Articulated-83
