Martin Product data sheet
Polyamide-Foot-Mild-Steel-Screw-Articulated
Polyamide-Foot-Mild-Steel-Screw-Articulated-83-HEX14

10300/12

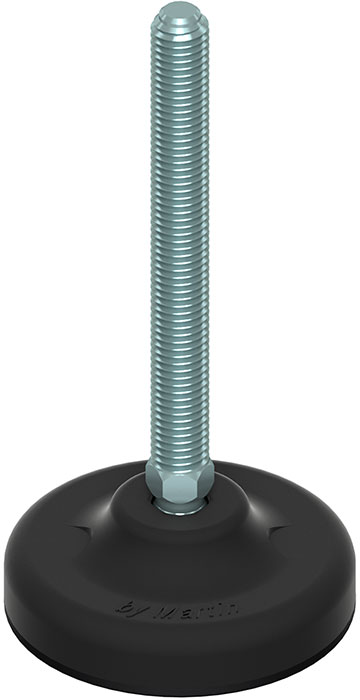

Polyamide Foot, Mild Steel Screw, Articulated

Sphere glass reinforced polyamide base with an articulated mild steel galvanized screw. Option for bolt/down holes. The spindle is made from hexagonal bar

Strenghts

30° Wide articulation, hexagonal wrench

Applications

General all-purpose product

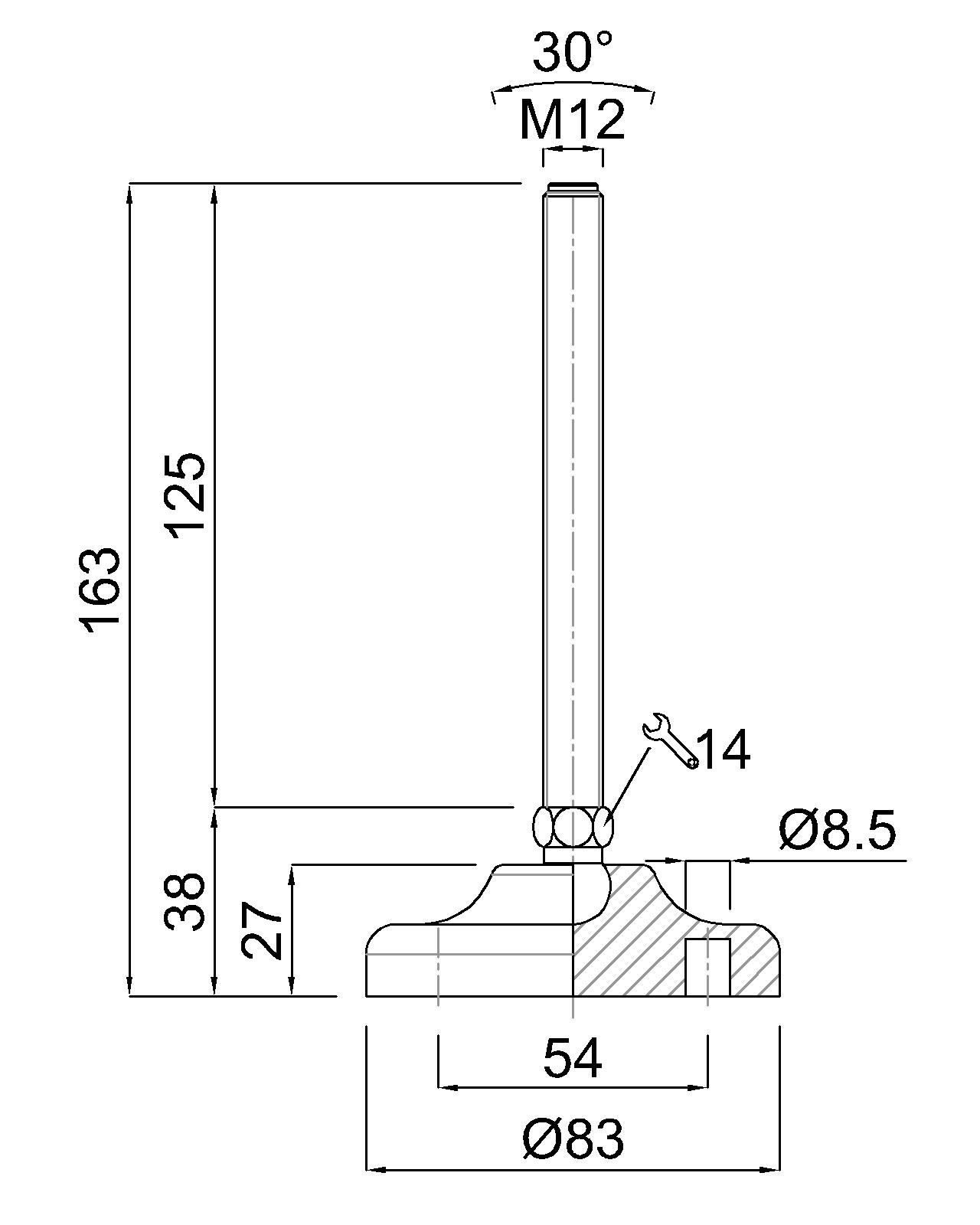

CODE 10300/12
SIZE (F)M12x1,75
FLOOR DISTANCE (A)38
STEM LENGTH (B)125,00
BASE SIZE (D)83
BASE HEIGHT (G)27
TOTAL HEIGHT (H)163,00
HOLE/S DISTANCE (I)54
REGULATION (SW)HEX 14
RUBBERNO
TREATMENTZINC-PLATED
WEIGHT (gr)183
LOAD (Newton)15000
10300-12
Polyamide-Foot-Mild-Steel-Screw-Articulated-83
