Stainless Steel Foot, Medium Load, Hygienic Screw, Articulated, Antislip, Teknoclean

Hygieninc foot USDA accepted, with a solid AISI 304 stainless steel polished base and a NBR 90 shore glued anti-slip pad. The fairly articulated spindle is half threadless, for easy-cleaning. It has a top sleeve, mounted with a bottom internal and a top external black silicon gasket, which covers the remaining threaded part and seals all the possible cavities where otherwise dirts and debrise would infiltrate.

Strenghts

Hygienic foot with half-threadedless spindle and silicone gaskets mounted covering sleeve for the threaded part, heavy loads thanks to the solid base, antislip, USDA approved

Applications

Hygienic environments, food, pharma, dairy, meat processing

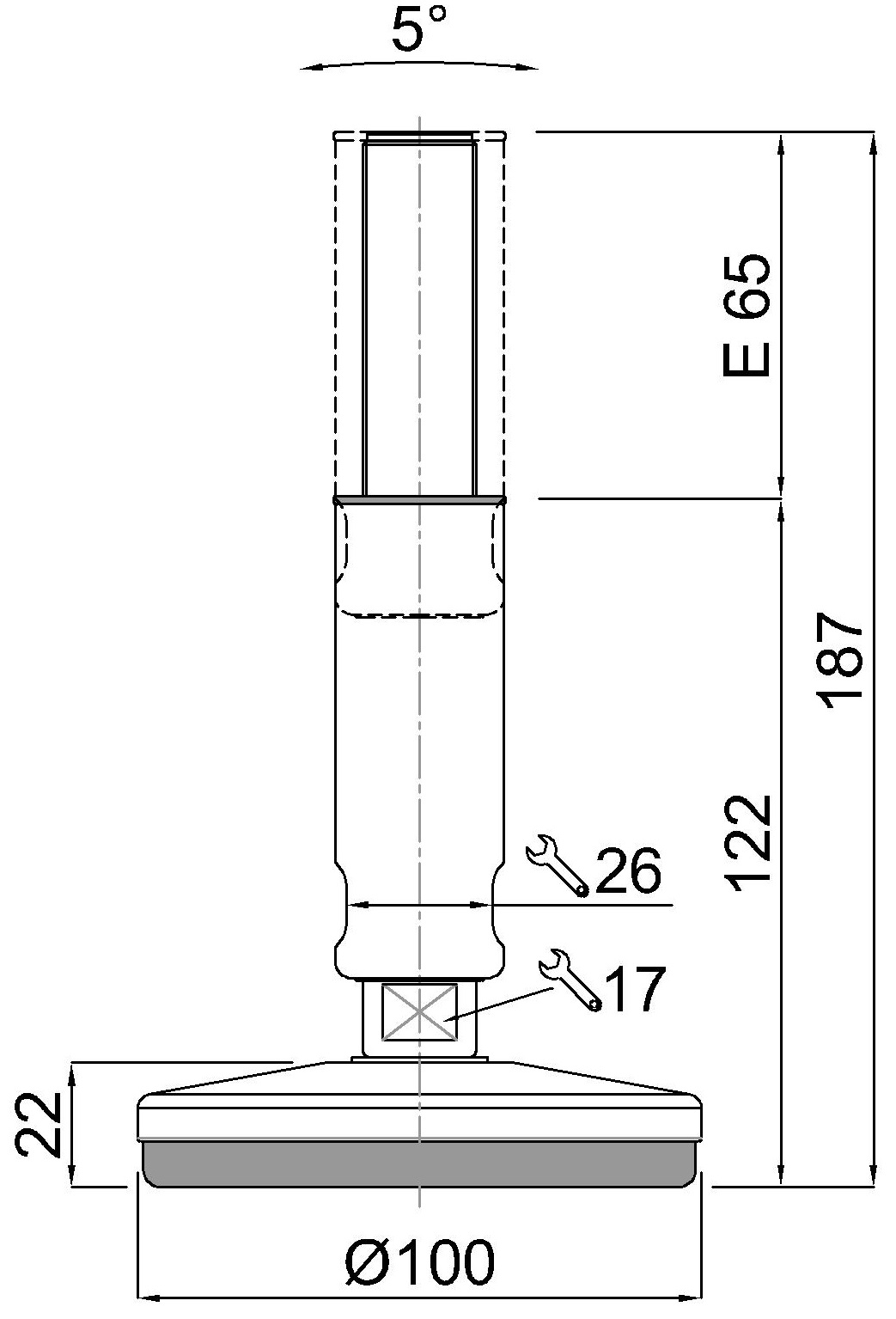

CODE 15300
SIZE (F)M20x2,5
STEM LENGTH (B)150,00
BASE SIZE (D)100
BASE HEIGHT (G)22
TOTAL HEIGHT (H)187,00
REGULATION (SW)17/26
RUBBERFDA Black NBR 90 Shore
TREATMENTTURNED FINISHING
WEIGHT (gr)1124
LOAD (Newton)30000
